ROBOTIS · Humanoid · 2025

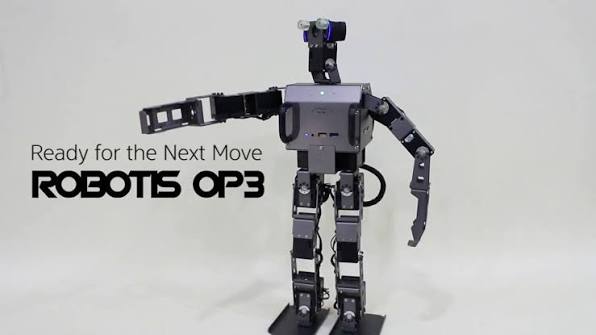

An affordable, fully open-source miniature humanoid research/education platform from ROBOTIS — the successor to the widely-used DARwIn-OP / OP2. It has 20 DYNAMIXEL XM430 actuator modules (6-DoF legs x2, 3-DoF arms x2, 2-DoF neck) with current-based control on a 4.5 Mbps bus, an OpenCR (ARM Cortex-M7) real-time controller, and an Intel NUC Core i3 with 8 GB DDR4 and an M.2 SSD for onboard compute. A 9-axis IMU (gyro/accel/magnetometer), a Logitech C920 HD camera, dual mics and a speaker handle perception. The 2025 re-release is built ground-up for ROS2, and the 1,800 mAh LiPo can be hot-swapped by plugging in external power before removal (~30 min runtime). Popular in the RoboCup humanoid leagues.
Price on application
View full interactive profile, comparisons & videos →| Category | Humanoid |
| Sub-type | Miniature Open-Source Humanoid |
| Status | Active |
| Year | 2025 |
| Origin | South Korea |
| Weight | 3.5 kg |
| Degrees of freedom | 20 |
| Battery life | 30 min |
| Camera | Logitech C920 HD |
| Chipset | Intel NUC i3 |
| Operating system | ROS 2 (Linux) |
| Actuator type | DYNAMIXEL XM430 (current-based control) |
| Connectivity | Wi-Fi, Bluetooth |
| Use cases | Robotics education, University research (vision, motion control), RoboCup humanoid league |
| Made in | South Korea |
