Rainbow Robotics · Humanoid · 2024

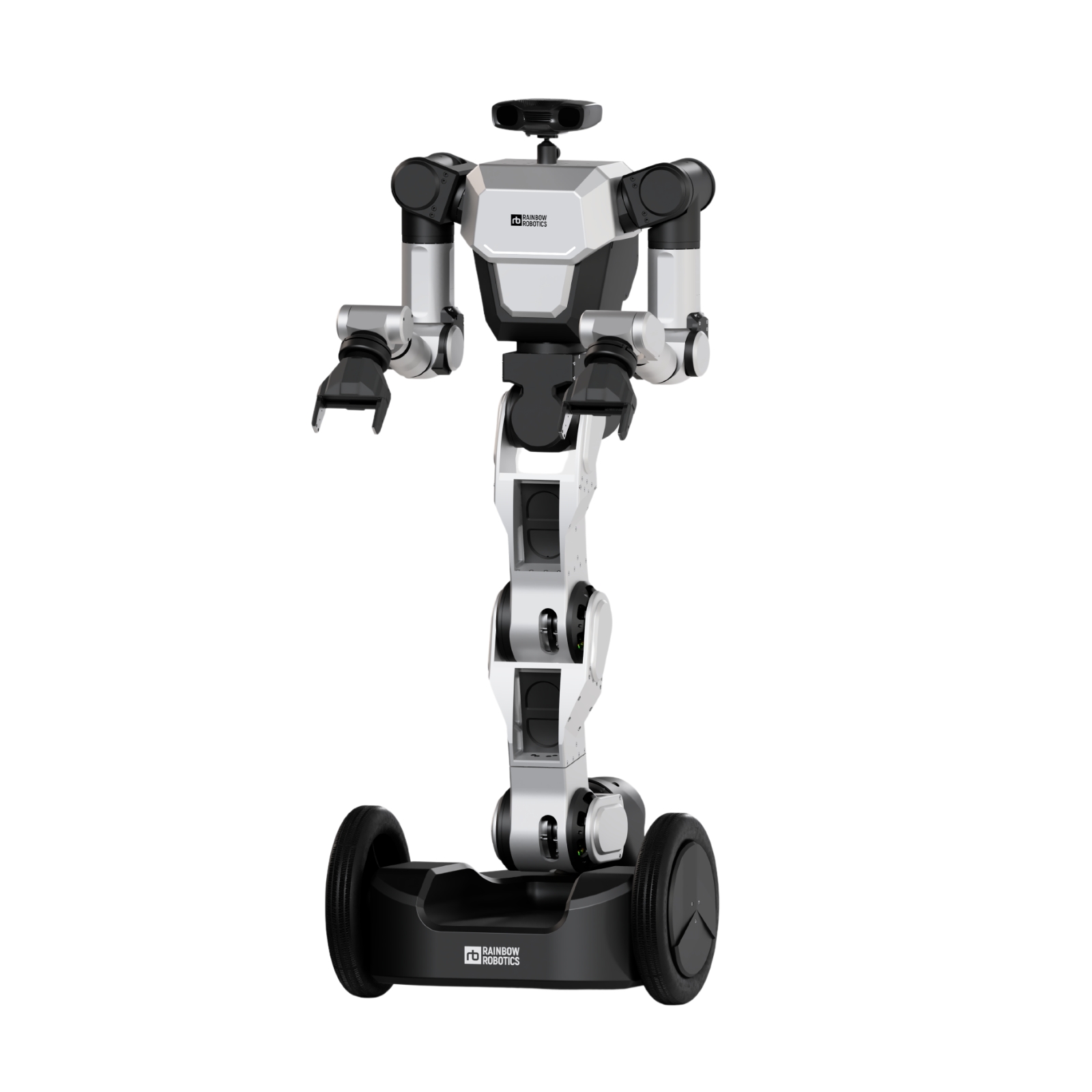

The Rainbow Robotics RB-Y1 is Korea's first bimanual mobile manipulator — a humanoid-type dual-arm system (two 7-DOF arms) mounted, via a 6-DOF single leg that raises the body more than 50 cm, on a high-speed wheeled base, for 24 total DOF under 20-axis whole-body control. Built by the KAIST-founded, publicly traded (KRX: 277810) company behind the DARPA-Challenge-winning HUBO humanoid, it reuses proven RB-cobot and AMR core components — BLDC/DC motors with harmonic-drive reducers — to deliver industrial-grade reliability rather than prototype fragility, with sub-millimetre repeatability and 3 kg payload per arm. The wheeled base travels at up to 2.5 m/s with high-speed turning and sudden acceleration stabilised by continuous centre-of-gravity control. Standing 1,400 mm tall on a 600×690 mm footprint at 131 kg, powered by a 50 V/25 Ah battery, it targets the embodied-AI era: programmed by master-slave demonstration (linking a data arm as master) with self-collision prevention, real-time teleoperation, LiDAR navigation and a simulation environment for AI learning. Rainbow positions it as a bridge between fixed cobots and full humanoids.
Price level: ★★★★★
View full interactive profile, comparisons & videos →| Category | Humanoid |
| Sub-type | Bimanual Wheeled Mobile Manipulator |
| Status | Active |
| Year | 2024 |
| Origin | South Korea |
| Announced | April 2024 |
| Released | 2023 |
| Dimensions (H×W×D) | 1400 × 600 × 690 mm |
| Weight | 131 kg |
| Degrees of freedom | 22 |
| Payload | 3 kg |
| Reach | Per-arm 7-DOF (RB-series-derived); >50 cm vertical body travel via 6-DOF leg mm |
| Max speed | 2.5 m/s |
| Repeatability | ±0.1 mm |
| Battery life | 180 min |
| Camera | Vision + LiDAR navigation stack |
| AI model | Master-slave teaching (data arm master -> robot slave); self-collision prevention; simulation environment for AI learning; teleoperation (goal: full autonomy) |
| Operating system | ROS/ROS2 |
| Actuator type | Cooperative-robot/AMR-grade precision actuators; 20-axis full-body control; single 6-DOF lifting leg/torso |
| Navigation | LiDAR-based mobile navigation; high-speed wheeled base (turning + rapid accel via 20-axis control) |
| Use cases | Bimanual manipulation research, Embodied-AI / imitation learning, Mobile manipulation in cluttered environments, Flexible industrial automation, Prototype assembly |
| Made in | South Korea |
