MagicLab · Humanoid · 2025

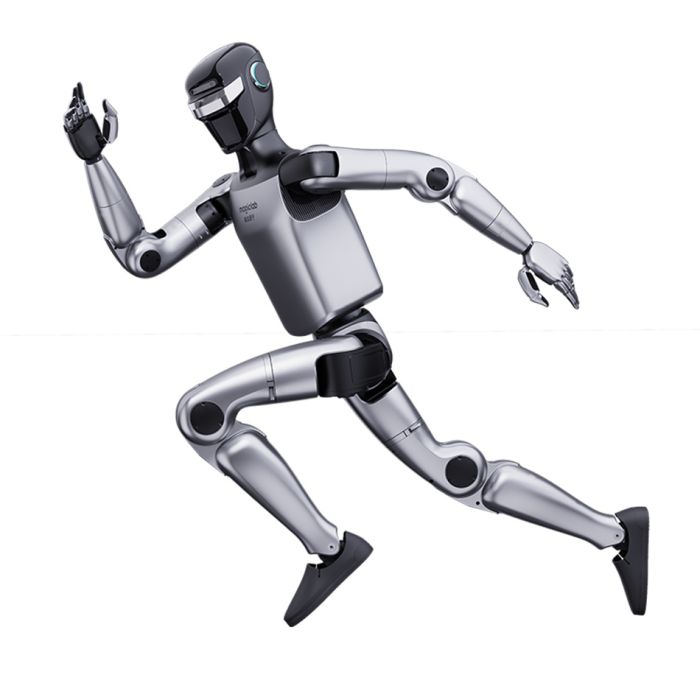

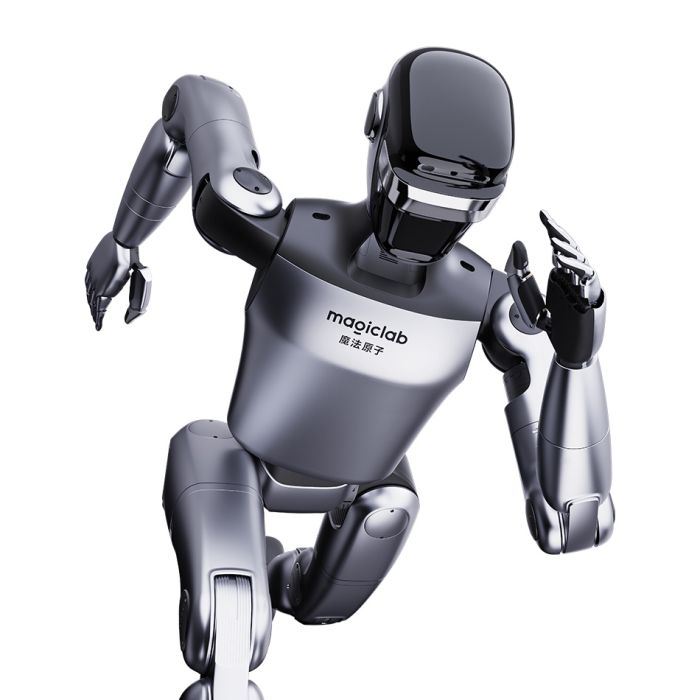

The MagicBot Z1 is MagicLab's compact, high-agility bipedal humanoid, unveiled in July 2025 and shown again at CES 2026. At about 1.4 m (136.9 cm) and 40 kg it has a human-child footprint that slips through tight indoor spaces, with 24 degrees of freedom in the standard build expandable to ~50 when fitted with optional sensors, arms and the 11-DOF MagicHand S01 (which adds five-fingered grasping up to ~3-5 kg per arm). In-house high-torque joints exceed 130 N·m with up to 320 degrees of travel, giving it acrobatic agility — fast motion, deep back-bends, and fall/prone recovery under disturbance. A 360-degree sensor suite (3D LiDAR, depth and binocular fisheye cameras, head tactile sensing) feeds a VLN navigation stack, with Wi-Fi 6 / Bluetooth 5.2, an 8-core CPU and a quick-release 10,000 mAh battery good for ~2 hours. MagicLab markets it as an open, developer-friendly platform for research, education and dynamic applications; its full-size sibling MagicBot Gen1/G1 targets industry. No public price.
Price on application
View full interactive profile, comparisons & videos →| Category | Humanoid |
| Sub-type | Compact Agile Humanoid |
| Status | Active |
| Year | 2025 |
| Origin | China |
| Dimensions (H×W×D) | 1400 × 422 × 200 mm |
| Weight | 40 kg |
| Frame | Aluminum alloy + engineering plastics |
| Degrees of freedom | 24 |
| Max speed | 2.5 m/s |
| Battery life | 120 min |
| Camera | Depth cameras + binocular fisheye vision |
| Chipset | 8-core CPU |
| AI model | IL/RL locomotion + multimodal dialogue (VLN navigation) |
| Actuator type | In-house high-torque smart joints (320° range) |
| Connectivity | Wi-Fi, Bluetooth |
| Use cases | Research, Education, Entertainment & performance, Developer platform |
| Made in | China |
