BXI Robotics · Humanoid · 2024

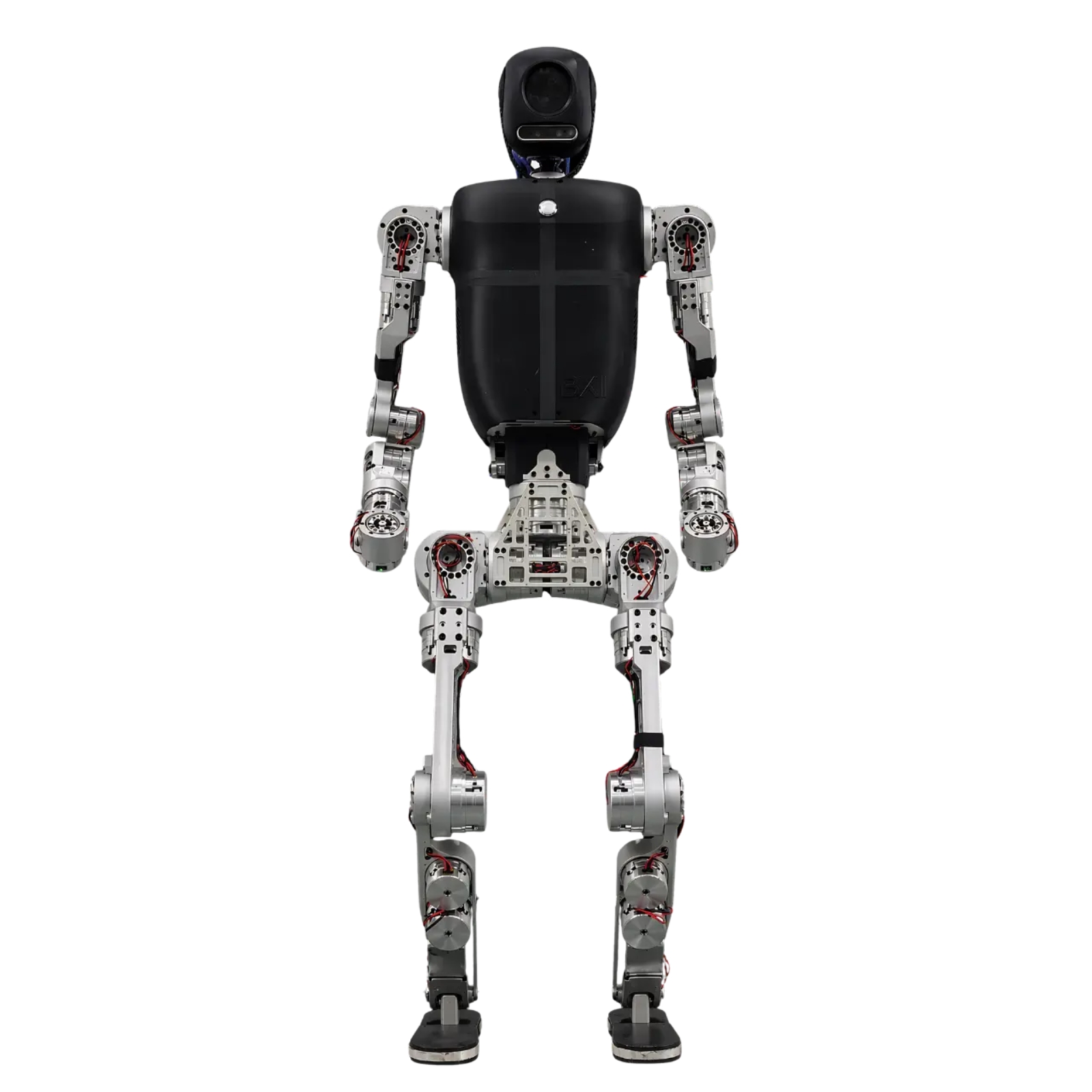

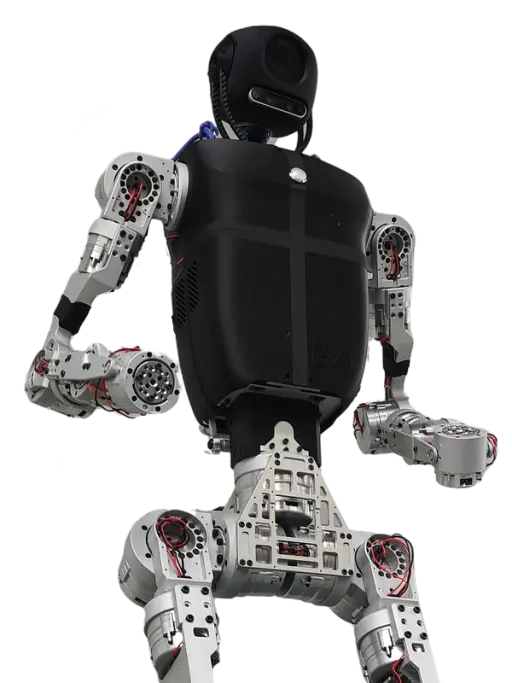

The BXI Elf, from China's BXI Robotics, is a human-sized open-source programmable bipedal robot aimed at embodied-AI research and sim-to-real deployment. Standing 1.45 m and just 32 kg for easy handling, it has 25 DOF (legs 2×6 with hip z/y/x, knee and dual-axis ankle; arms 5×2; 3-DOF waist) driven by BXI's own high-torque joint motors delivering up to 150 N·m at the hips and knees, and it can handle a payload over 25 kg. With an open SDK and ready-to-deploy architecture, it's designed as a testbed for algorithm development and sim-2-real transfer; BXI also sells the underlying high-performance joint motors and turnkey OEM solutions, and offers the updated Elf 3 generation. NOTE: full specs from BXI Robotics official product page — verified, museum-grade for a research biped (height/weight/full DOF breakdown/torque/payload all published).
Price level: ★★☆☆☆
View full interactive profile, comparisons & videos →| Category | Humanoid |
| Sub-type | Open-Source Research Biped |
| Status | Active |
| Year | 2024 |
| Origin | China |
| Announced | 2024 |
| Released | 2024 |
| Weight | 32 kg |
| Degrees of freedom | 25 |
| Payload | 25 kg |
| Actuator type | High-torque joint motors — max 150 N·m on hips & knees (BXI in-house) |
| Use cases | Embodied-AI research, Sim-2-real algorithm testing, Education, OEM humanoid development |
| Made in | China (Shanghai) |
