Boston Dynamics · Humanoid · 2017

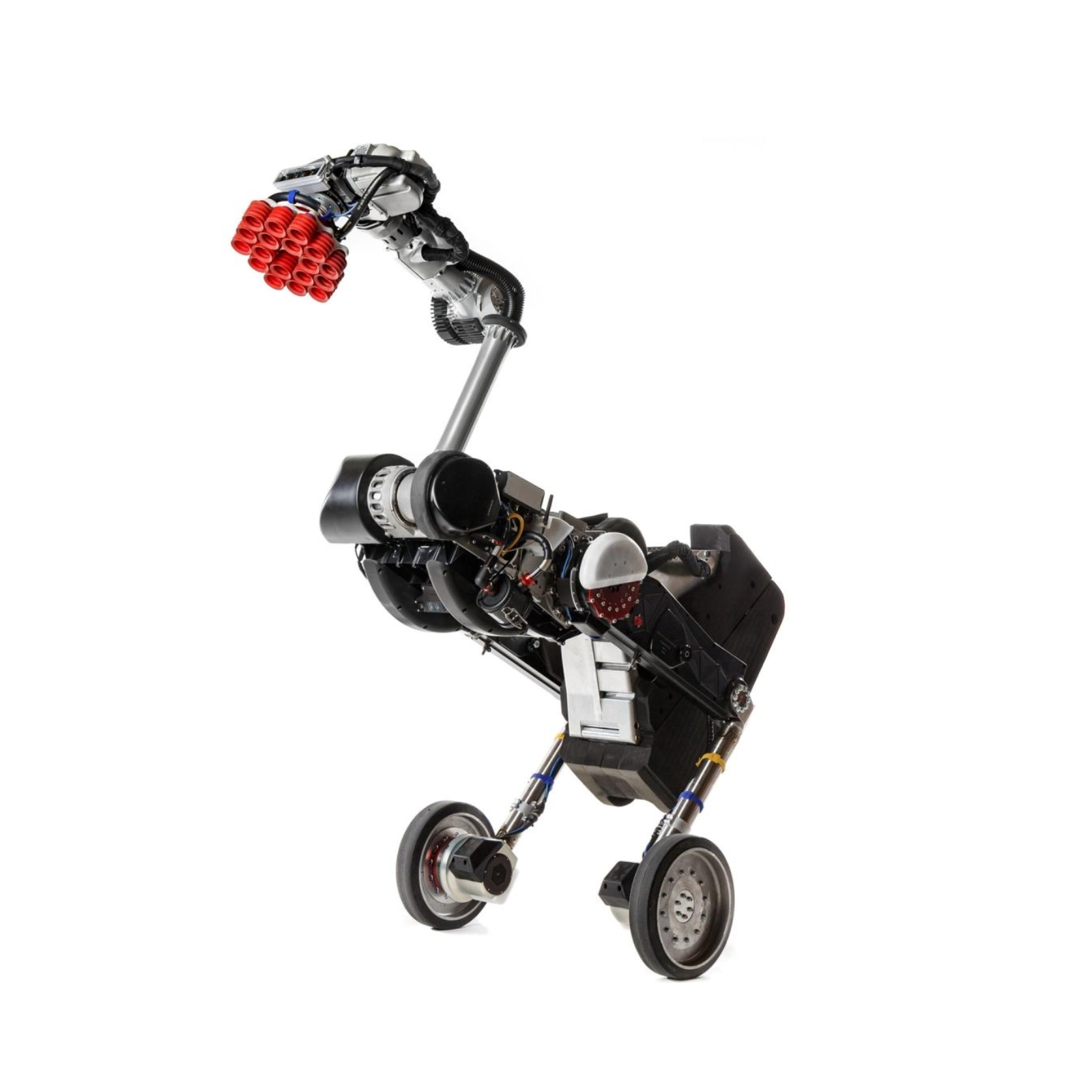

Handle (2017) was Boston Dynamics' wheeled-legged robot — a tall, dynamic machine combining legs with wheels for fast, efficient movement, plus an arm with a vacuum gripper for box handling in warehouses. It could move at ~9 mph, handle 15kg boxes and perform athletic feats like jumps, bridging Boston Dynamics' legged research toward the logistics robot Stretch.
Price on application
View full interactive profile, comparisons & videos →| Category | Humanoid |
| Sub-type | Wheeled-Legged Material-Handling Robot |
| Status | Active |
| Year | 2017 |
| Origin | USA |
| Dimensions (H×W×D) | 2000 × 600 × 400 mm |
| Weight | 105 kg |
| Frame | Aluminum alloy |
| Degrees of freedom | 10 |
| Payload | 45 kg |
| Reach | 1200 mm |
| Max speed | 4 m/s |
| Battery | 2400 Wh |
| Battery life | 120 min |
| Charge time | 3 hours min |
| Camera | RGB cameras, Depth cameras |
| Chipset | Custom control system |
| AI model | Navigation AI |
| Operating system | Custom Linux |
| Actuator type | Electric + hydraulic actuators; ~10 actuated joints; two self-balancing wheels on legs + swinging counterweight 'tail' |
| Connectivity | Wi-Fi, Bluetooth |
| Use cases | Warehouse automation, Material handling, Prototype testing |
| Made in | USA |
