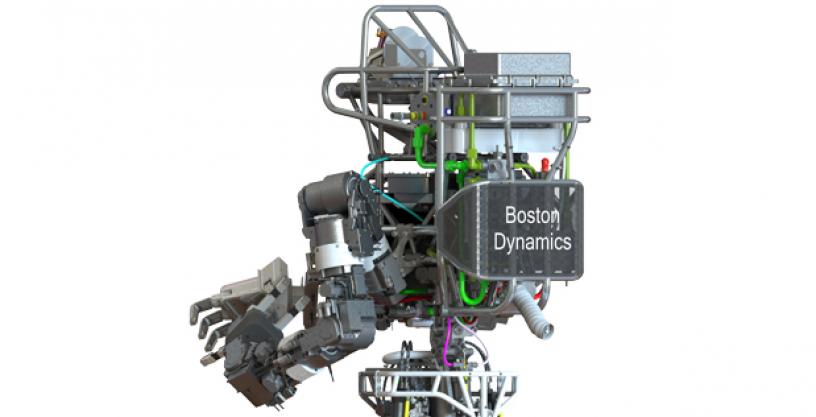

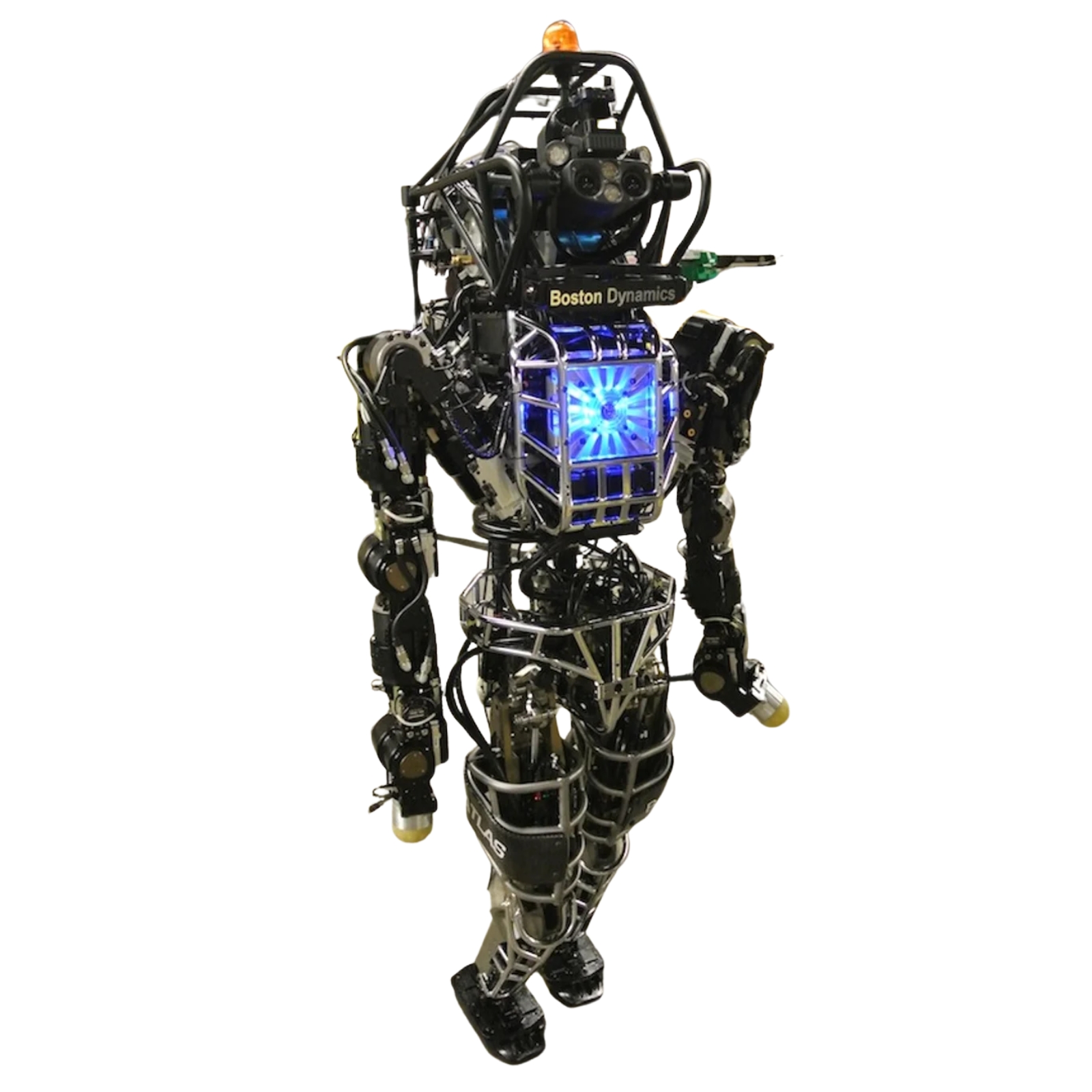

Boston Dynamics · Humanoid · 2013
The original Atlas (2013) was built by Boston Dynamics for the DARPA Robotics Challenge — a ~1.88m, 150kg hydraulic humanoid designed for search-and-rescue tasks in disaster environments (driving, valve-turning, debris clearing). Initially tethered to external power, it was the first-generation Atlas that evolved into the untethered Atlas HD.
Price on application
View full interactive profile, comparisons & videos →| Category | Humanoid |
| Sub-type | Hydraulic DRC Disaster-Response Humanoid |
| Status | Active |
| Year | 2013 |
| Origin | USA |
| Dimensions (H×W×D) | 1880 × 650 × 450 mm |
| Weight | 150 kg |
| Frame | Aluminum |
| Degrees of freedom | 28 |
| Payload | 20 kg |
| Reach | 800 mm |
| Max speed | 1.5 m/s |
| Battery | 3600 Wh |
| Battery life | 60 min |
| Charge time | 4 hours min |
| Camera | Stereo cameras, Laser rangefinder |
| Chipset | Intel-based computer |
| AI model | Whole-body dynamic balancing; teams' software (VRC-transferred); teleoperation + autonomy |
| Operating system | Ubuntu Linux |
| Actuator type | 28 hydraulic actuators (6 per leg, 6 per arm, 3 back, 1 neck pitch); tethered (2013); 2015 upgrade added battery + pump; aluminum + titanium |
| Connectivity | Wi-Fi, Bluetooth |
| Use cases | Disaster response, Research, Competition |
| Made in | USA |
