NASA/JPL · Aerospace · 2018

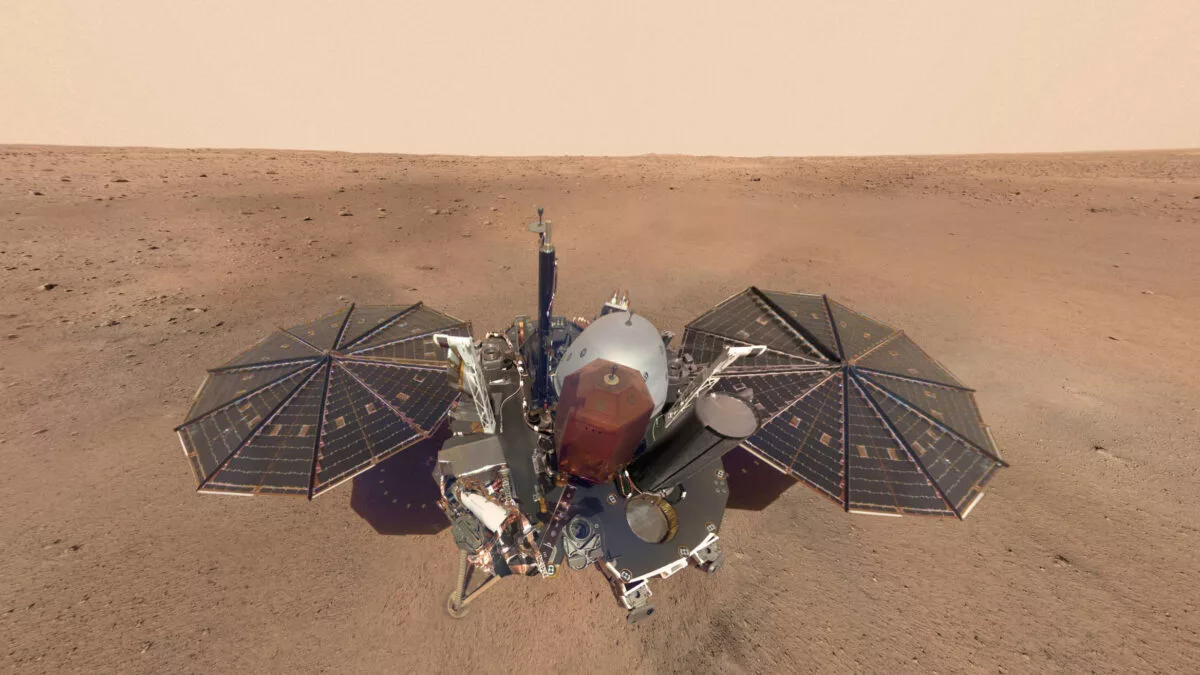

Interior Exploration using Seismic Investigations, Geodesy and Heat Transport. Stationary Mars lander built on the Phoenix design with larger solar panels. Equipped with a robotic instrument deployment arm that placed a French-built seismometer (SEIS) and a German-built self-hammering heat probe (HP3 'mole') on the surface. Detected over 1,300 marsquakes and revealed Mars's interior structure before being decommissioned due to dust buildup on solar panels.
Price on application
View full interactive profile, comparisons & videos →| Category | Aerospace |
| Sub-type | Planetary Lander |
| Status | Active |
| Year | 2018 |
| Origin | USA |
| Also known as | Interior Exploration using Seismic Investigations, GEMS, Discovery 12 |
| Announced | 2012-08-20 |
| Released | 2018-11-26 |
| Dimensions (H×W×D) | 1000 × 6000 × 1560 mm |
| Weight | 358 kg |
| Frame | Aluminum, composites |
| Degrees of freedom | 4 |
| Payload | 9 kg |
| Reach | 1800 mm |
| Camera | Instrument Deployment Camera (IDC, color), Instrument Context Camera (ICC, fisheye) |
| Chipset | BAE Systems RAD750 (rad-hardened PowerPC) |
| Actuator type | Brushed DC motors with harmonic drives |
| Made in | USA |
