CSA · Aerospace · 2001

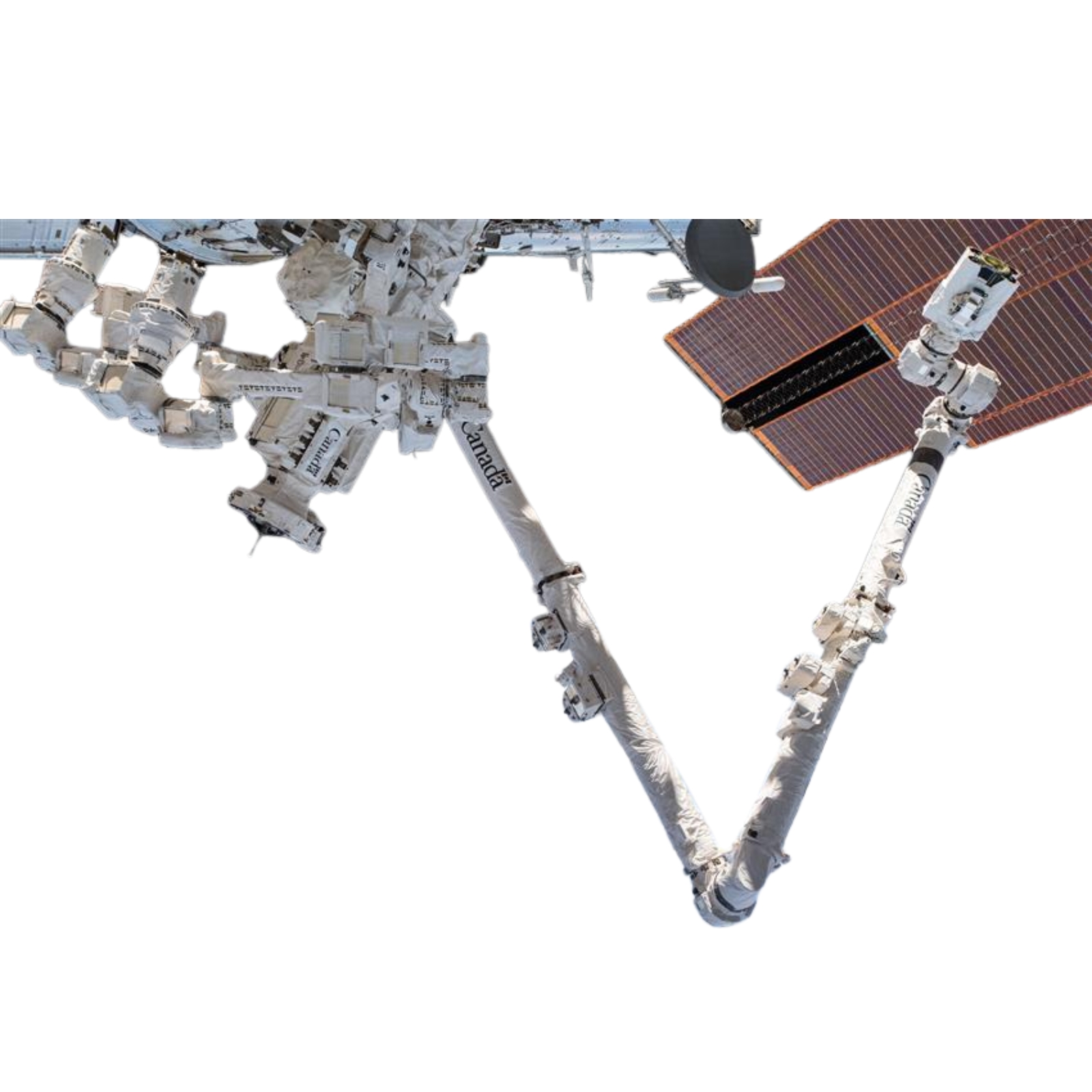

Space Station Remote Manipulator System (SSRMS). 17.6 m, 7-DOF arm installed on the ISS in 2001. Capable of 'walking' along the station by attaching either end to a base point. Routinely captures visiting cargo spacecraft including SpaceX Dragon and Northrop Grumman Cygnus, and assists astronauts during spacewalks. Built by MDA. Still operational after 25 years.
Price on application
View full interactive profile, comparisons & videos →| Category | Aerospace |
| Sub-type | Space Station Arm |
| Status | Active |
| Year | 2001 |
| Origin | Canada |
| Also known as | SSRMS, Space Station Remote Manipulator System |
| Announced | 1994 |
| Released | 2001-04-19 |
| Weight | 1800 kg |
| Frame | Graphite/epoxy composite, titanium |
| Degrees of freedom | 7 |
| Payload | 116000 kg |
| Reach | 17600 mm |
| Max speed | 0.37 m/s |
| Repeatability | ±50 mm |
| Actuator type | Brushless DC motors with redundant windings |
| Made in | Canada (MDA) |
