Techman Robot · Industrial · 2024

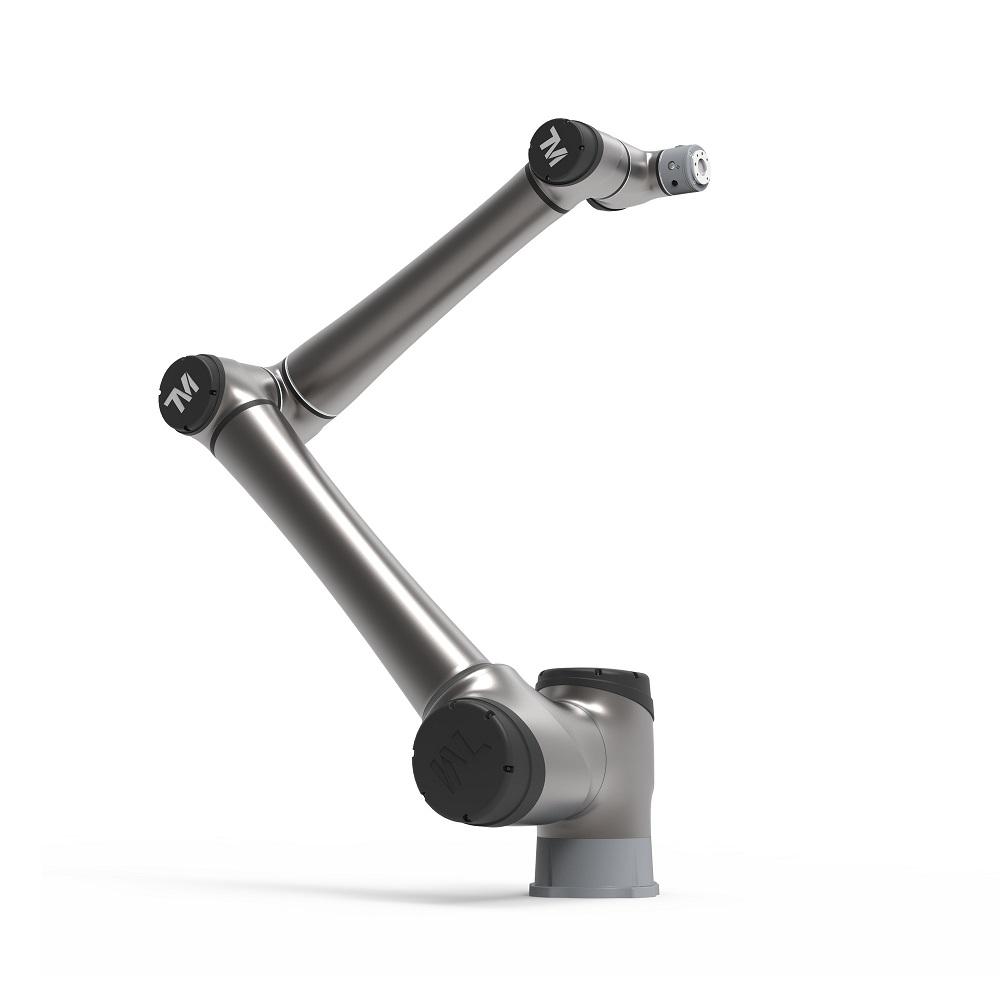

The heavy-duty flagship of Techman Robot's AI Cobot S series (Techman is a Quanta subsidiary and Omron partner). The TM25S handles a 25 kg payload across a 1,902 mm reach at TCP speeds up to 5.2 m/s, with a built-in wrist force-torque sensor and best-in-class +/-0.03 mm repeatability. It runs ~25% faster than its predecessor (6th-axis joint speed up from 225 to 450 degrees/s, cutting cycle time ~25%). Like all Techman cobots it ships with an integrated 5 MP smart-vision camera and illumination ring on the flange plus TM AI+ software for object detection, barcode reading and visual positioning — no external vision controller needed. Up to 31 TUV-certified safety functions (ISO 10218-1, ISO 13849-1 PL d Cat. 3; UL/CSA/CE) let it work fence-free, and it's programmed via the graphical, flow-based TMflow (with a Script node for C# power users). Built for high-volume pick-and-place, machine tending, packaging, palletizing and automotive assembly.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Heavy-Duty AI Cobot (6-axis) |
| Status | Active |
| Year | 2024 |
| Origin | Taiwan |
| Degrees of freedom | 6 |
| Payload | 25 kg |
| Reach | 1902 mm |
| Max speed | 5.2 m/s |
| Repeatability | ±0.03 mm |
| Camera | Integrated 5MP smart vision (flange) + illumination ring |
| AI model | TM AI+ (object detection, barcode, visual positioning) |
| Use cases | High-volume pick-and-place, Machine tending, Packaging / palletizing, Automotive assembly, Semiconductor |
| Made in | Taiwan |
