Stäubli · Industrial · 2015

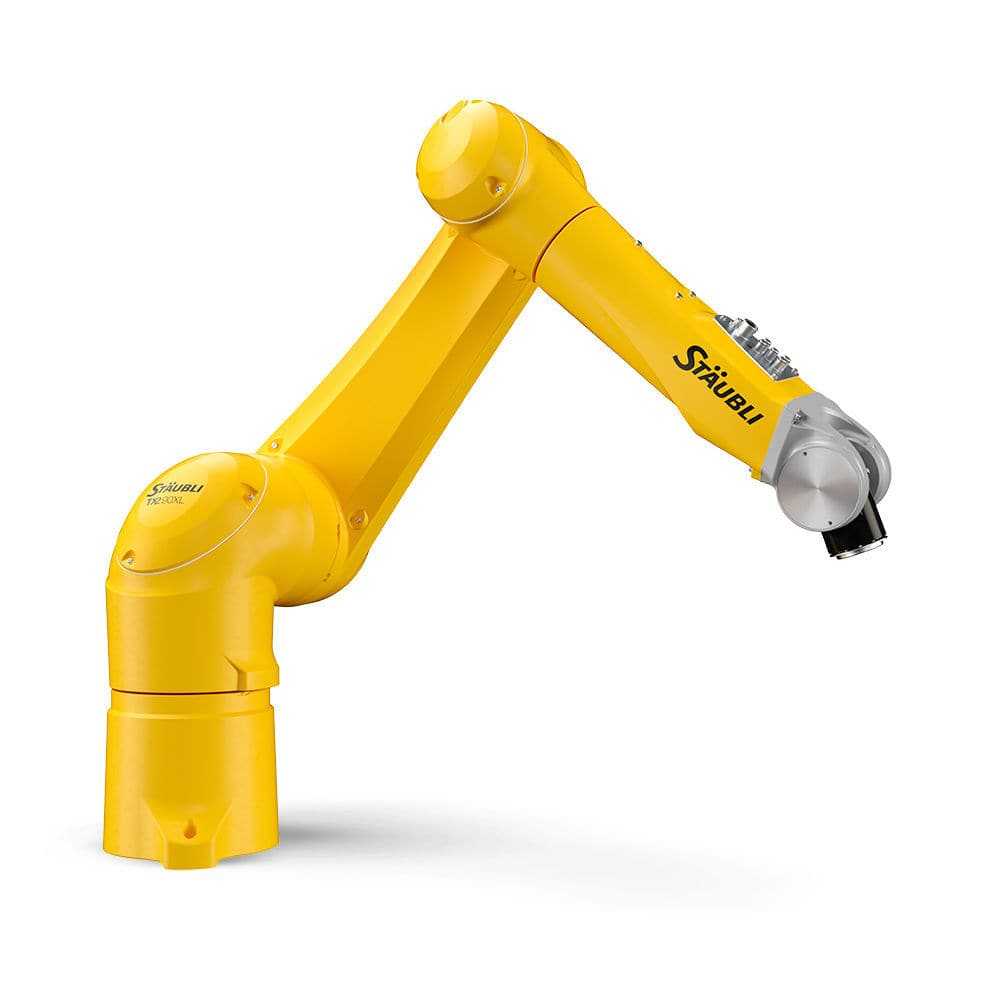

The Staubli TX2-90XL is a fast, rigid 6-axis industrial robot (7 kg payload, 1450 mm reach) from Switzerland, known for high path accuracy and hygienic/cleanroom variants, with optional SIL3-PLe safety for human collaboration.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | 6-Axis Articulated Arm |
| Status | Active |
| Year | 2015 |
| Origin | Switzerland |
| Released | 2015 |
| Weight | 145 kg |
| IP rating | IP65 |
| Degrees of freedom | 6 |
| Payload | 7 kg |
| Reach | 1450 mm |
| Max speed | 8.5 m/s |
| Repeatability | ±0.03 mm |
| Camera | Optional vision systems available |
| Operating system | Staubli CS9 |
| Connectivity | Wi-Fi, Bluetooth |
| Use cases | High-precision assembly, Machine tending, Material handling, Cleanroom / pharma |
| Warranty | 24 months |
| Made in | Switzerland |
