Stäubli · Industrial · 2019

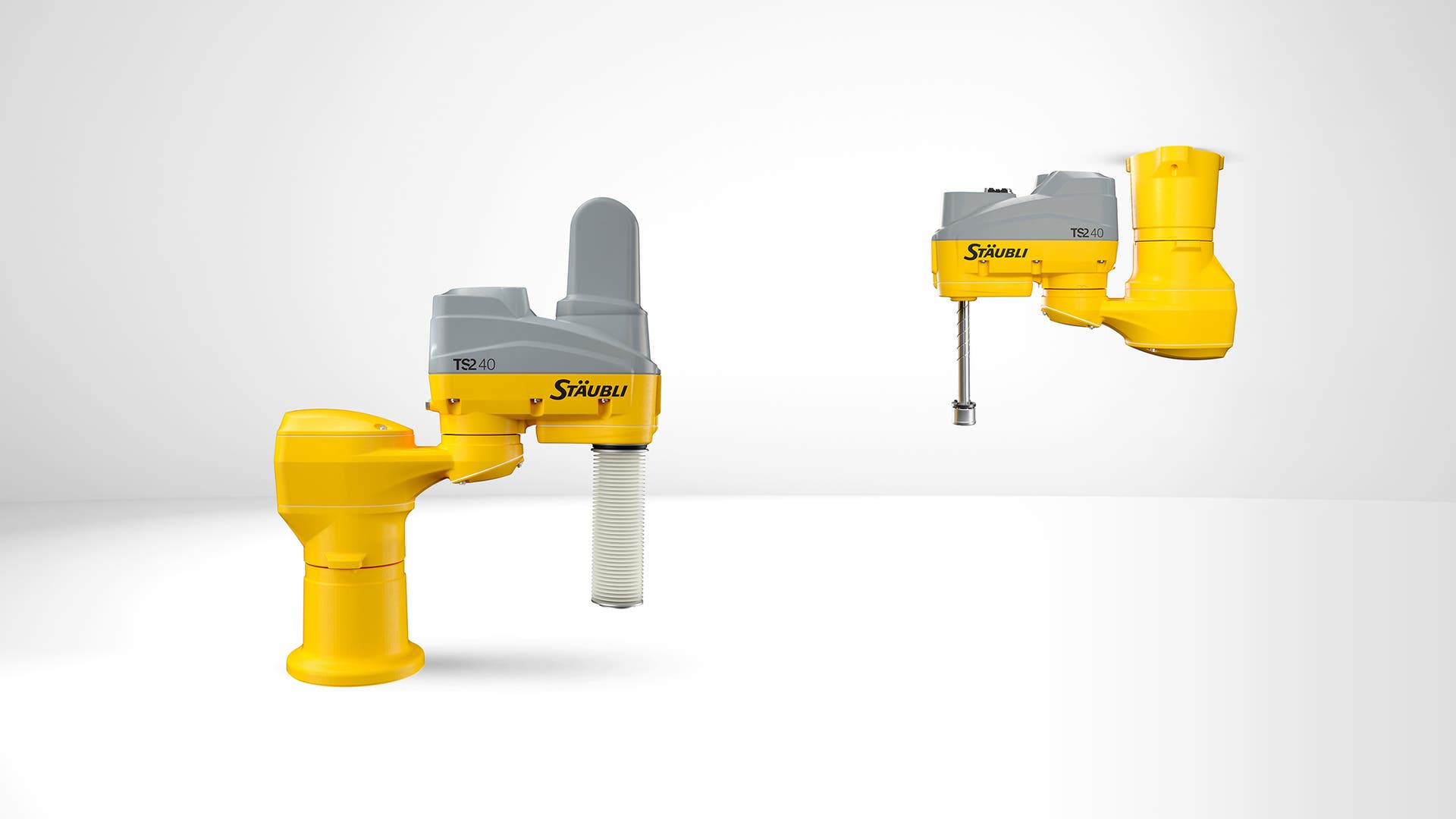

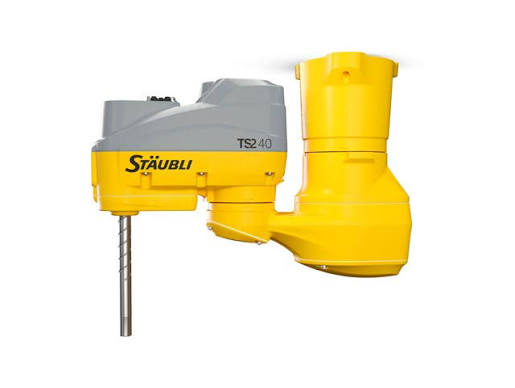

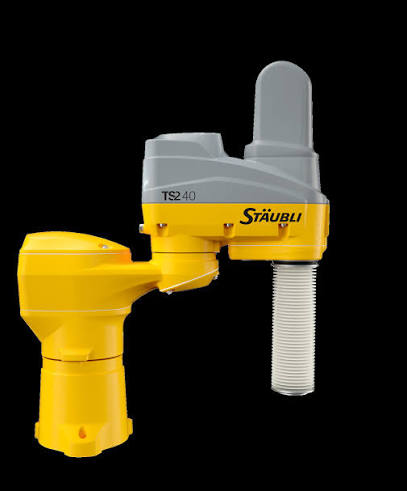

The Staubli TS2-40 is a 4-axis SCARA robot (4 kg payload, 400 mm reach) with proprietary JCS drives for ultra-short cycle times, repeatability to +/-0.01 mm and a fully encapsulated IP65 hygienic design.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | SCARA |
| Status | Active |
| Year | 2019 |
| Origin | Switzerland |
| Released | 2019 |
| Weight | 12 kg |
| IP rating | IP65 |
| Degrees of freedom | 4 |
| Payload | 4 kg |
| Reach | 400 mm |
| Max speed | 10.5 m/s |
| Repeatability | ±0.01 mm |
| Operating system | Staubli CS9 |
| Use cases | High-speed pick-and-place, Assembly, Packaging |
| Warranty | 12 months |
| Made in | Switzerland |
