RealMan · Industrial · 2023

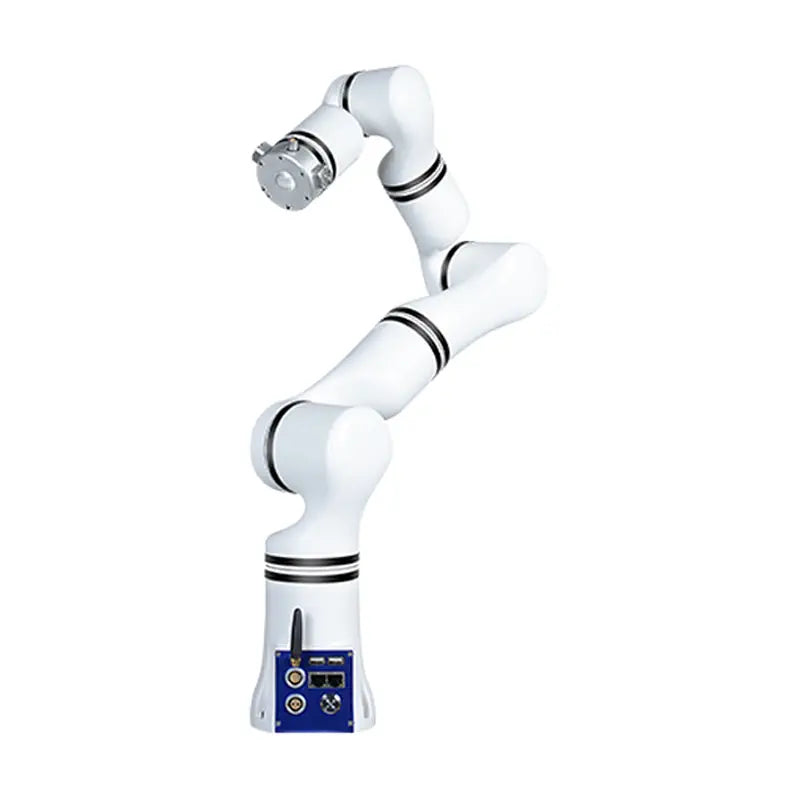

The RealMan RM65-B is the flagship of the ultra-lightweight humanoid robotic arm category RealMan defined — a 6-DoF arm modelled 1:1 on the human arm that weighs just 7.2 kg including its integrated controller while lifting a 5 kg rated payload (9 kg peak) across a 610 mm working radius, a payload-to-weight ratio roughly four times better than conventional cobots. RealMan builds its own harmonic reducers (−50% volume, −40% weight vs peers), servo motors, drivers and controllers, which is how the arm needs no external cabinet: it runs from 24 VDC on a Ø110 mm base with ±0.05 mm repeatability and IP54 protection. A contact-stop safety module enables fenceless collaboration and drag teaching, with control via pendant, open JSON API, Wi-Fi, Ethernet, Bluetooth, USB serial or RS485, plus official ROS/MoveIt packages. Its size and power budget make it the default arm for Chinese humanoid torsos, mobile manipulators and research platforms; 6F force-sensing and B-V vision variants extend the family.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Ultra-Lightweight Collaborative Arm |
| Status | Active |
| Year | 2023 |
| Origin | China |
| Released | 2023 |
| Dimensions (H×W×D) | 688 × 130 × 130 mm |
| Weight | 7.2 kg |
| IP rating | IP54 |
| Degrees of freedom | 6 |
| Payload | 5 kg |
| Reach | 610 mm |
| Max speed | 2 m/s |
| Repeatability | ±0.05 mm |
| Operating system | RealMan |
| Actuator type | In-house servo joints — high-torque-density motors + RealMan harmonic reducers (integrated controller/driver) |
| Connectivity | Wi-Fi, Bluetooth |
| Use cases | Humanoid & service robot arms, Mobile manipulation, Research & education, Light automation |
| Warranty | 12 months |
| Made in | China (Beijing) |
