RealMan · Industrial · 2022

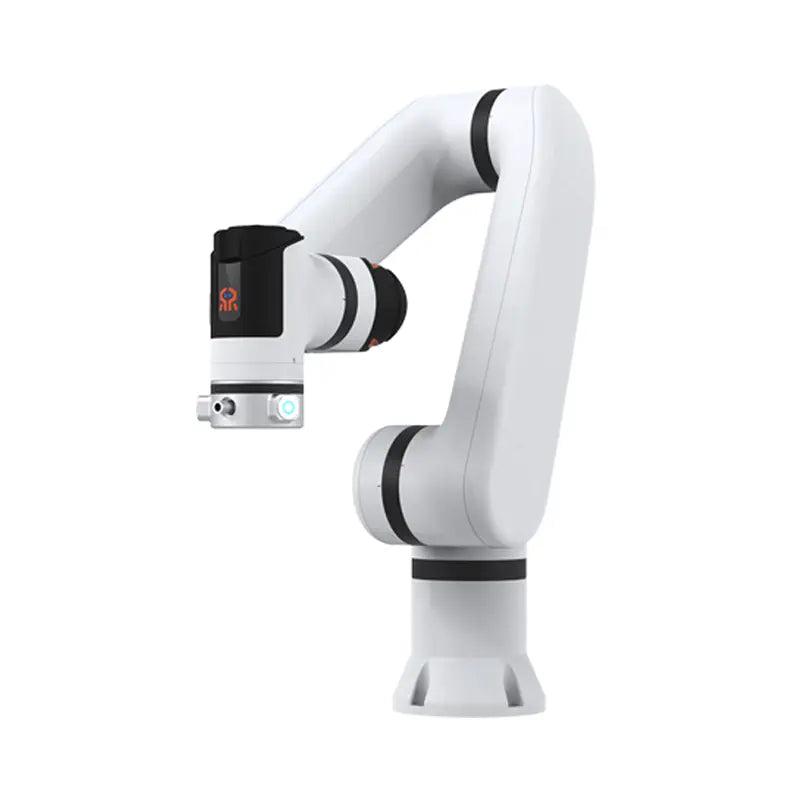

The RealMan ECO65-B is the economy line of RealMan's ultra-lightweight arm family — the same 6-DoF, 5 kg-payload (9 kg peak), 638.5 mm-radius, ±0.05 mm-repeatability formula as the RM65, engineered to a sharper price point (US$10,970 at authorized distributor RobotShop) for education, logistics and cost-sensitive automation. Joint speeds run 180°/s on the shoulder pair and 225°/s on the remaining four axes across a ±178° envelope with a ±360° wrist. The family architecture carries over: integrated in-arm controller on 24 VDC, IP54, in-house harmonic reducers and servo joints, contact-stop collaborative safety, drag teaching, open JSON API and official ROS/MoveIt packages. A 6F variant adds integrated six-axis force sensing.
Price level: ★☆☆☆☆
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Ultra-Lightweight Collaborative Arm |
| Status | Active |
| Year | 2022 |
| Origin | China |
| Released | 2022 |
| Dimensions (H×W×D) | 580 × 180 × 180 mm |
| Weight | 7.8 kg |
| IP rating | IP54 |
| Degrees of freedom | 6 |
| Payload | 5 kg |
| Reach | 638.5 mm |
| Max speed | 1 m/s |
| Repeatability | ±0.05 mm |
| Camera | Optional external camera support |
| Operating system | RealMan |
| Actuator type | In-house servo joints — high-torque-density motors + RealMan harmonic reducers (integrated controller/driver) |
| Connectivity | Wi-Fi, Bluetooth |
| Use cases | Cost-effective automation, Logistics & assembly, Education, Electronics manufacturing |
| Warranty | 12 months |
| Made in | China (Beijing) |
