Rainbow Robotics · Industrial · 2020

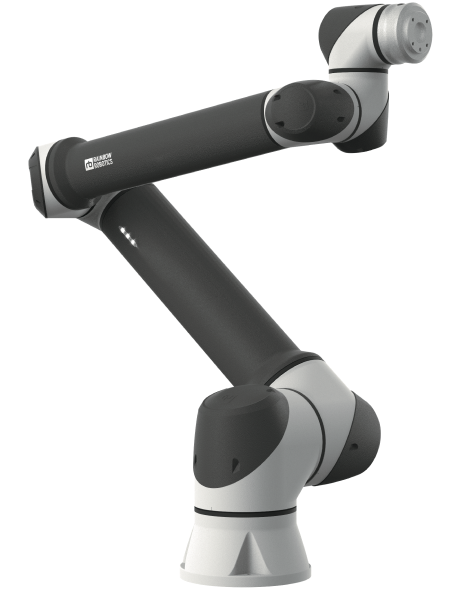

The Rainbow Robotics RB10-1300 is the long-reach, high-payload member of the Korean RB collaborative series — 10 kg payload across a 1,300 mm reach (the longest in the RB line) at ±0.05 mm repeatability, from a relatively light 37.1 kg body on a compact Ø196 mm footprint. Built from aluminium, plastic and steel with IP66 sealing for washdown and dusty environments (0–50 °C, <65 dBA), it's aimed at logistics-style work with heavy objects at distance: palletizing, packaging and courier handling. Rainbow's design signature is accessibility — commissioning from unpacking to first task typically takes under an hour, and instead of a heavy proprietary pendant the RB series is taught from an ordinary Android tablet (a Samsung Galaxy) or Windows PC. The M10 12-pin tool connector supplies 12/24 V for plug-and-play grippers, sensors, welders and HMIs, with an NSF food-grade version available. Rainbow Robotics — a KAIST-founded, publicly traded firm (KRX: 277810) behind the DARPA-winning HUBO humanoid — builds the RB arms on the same industrial-grade actuators as its humanoid work.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Collaborative Robot Arm |
| Status | Active |
| Year | 2020 |
| Origin | South Korea |
| Released | 2020 |
| Weight | 37.1 kg |
| Frame | Aluminium, plastic, steel |
| IP rating | IP66 |
| Degrees of freedom | 6 |
| Payload | 10 kg |
| Reach | 1300 mm |
| Max speed | 1.5 m/s |
| Repeatability | ±0.05 mm |
| Operating system | Rainbow Robotics |
| Use cases | Palletizing, Packaging, Courier / logistics handling, Assembly, Machine tending |
| Warranty | 12 months |
| Made in | South Korea |
