JAKA · Industrial · 2020

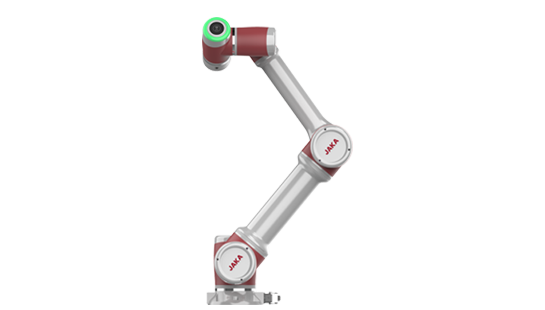

The JAKA Zu 5 is the volume workhorse of JAKA's Zu collaborative-robot family — a 5 kg-payload, 954 mm-reach 6-axis arm hitting ±0.02 mm repeatability and TCP speeds up to 3 m/s from a 23 kg body. Like all Zu cobots it is built on JAKA's unified integral joints and taught wirelessly — free-drive drag teaching plus graphical drag-and-drop programming on any phone, tablet or PC, with no teach pendant required. It runs fenceless beside operators via its collision-detection module (ISO 10218-1), mounts in any orientation on a 158 mm footprint, and is rated for cleanroom use to ISO Class 5, opening semiconductor and pharma applications. Typical consumption is 350 W through the IP44 control cabinet, which carries 16/16 digital I/O and TCP/IP, Modbus, PROFINET and EtherNet/IP. An 80,000-hour MTBF and the force-sensing Zu 5s variant round out a platform aimed squarely at machine tending, assembly and finishing work.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Collaborative Robot (Cobot) |
| Status | Active |
| Year | 2020 |
| Origin | China |
| Released | 2020 |
| Weight | 23 kg |
| Frame | Aluminium & PC |
| IP rating | IP54 |
| Degrees of freedom | 6 |
| Payload | 5 kg |
| Reach | 954 mm |
| Max speed | 3 m/s |
| Repeatability | ±0.02 mm |
| Operating system | JAKA |
| Actuator type | Integral joint modules (motor + drive + encoder unified) |
| Connectivity | Wi-Fi |
| Use cases | Assembly, Machine tending, Pick & place, Deburring, Polishing |
| Warranty | 24 months |
| Made in | China (Shanghai) |
