JAKA · Industrial · 2020

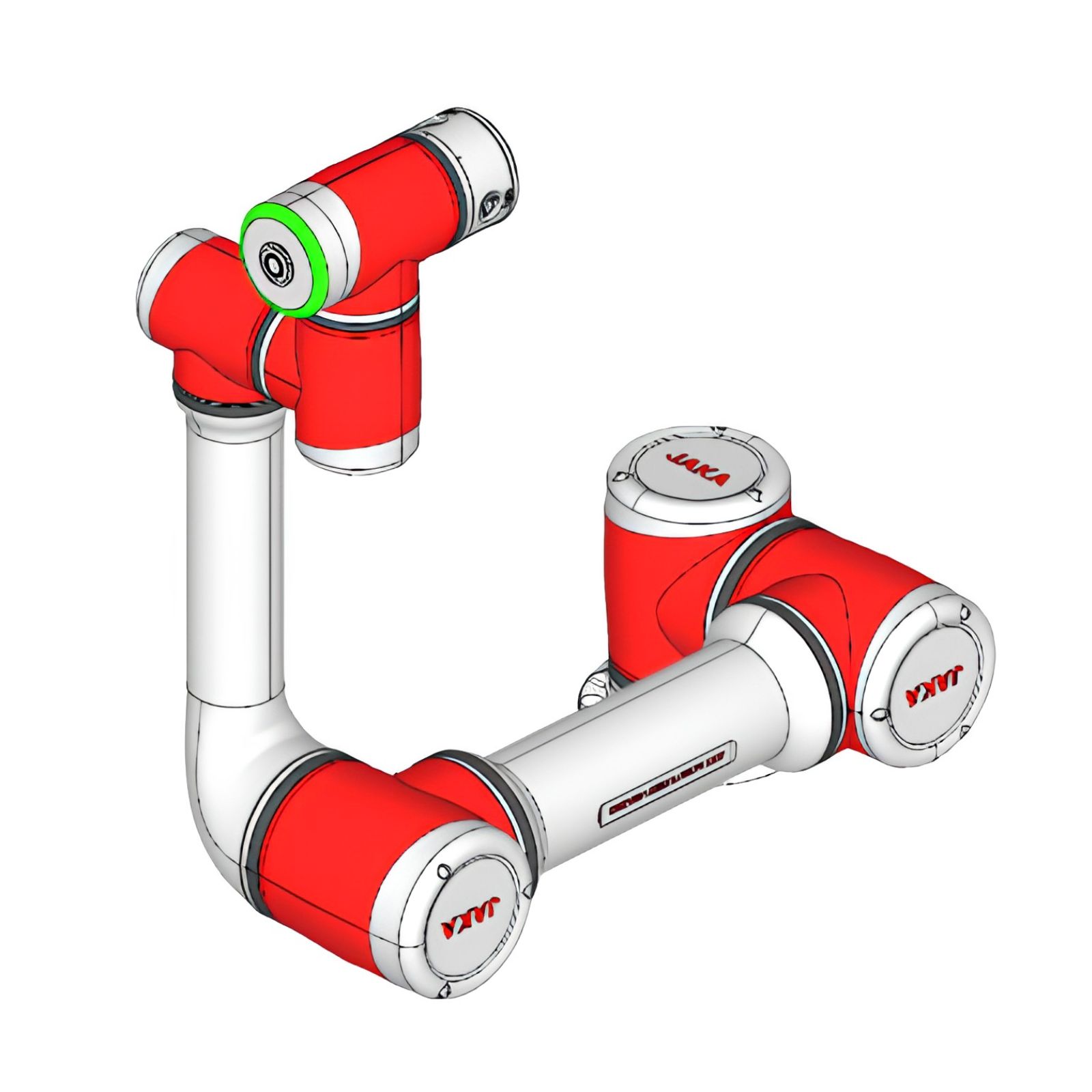

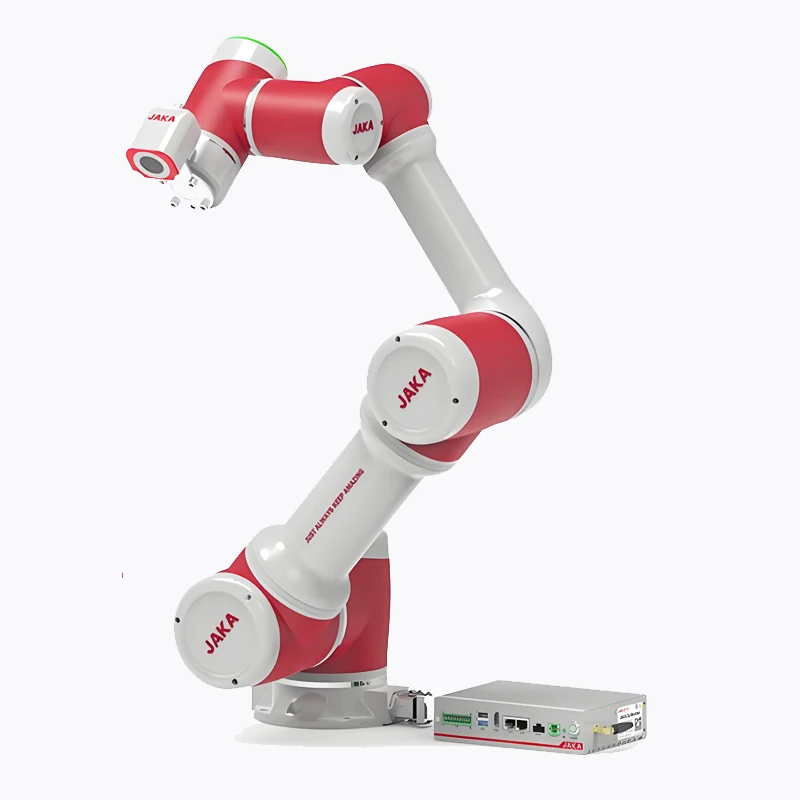

The JAKA JAKA S5 is a 6-axis collaborative robot (5 kg payload, 954 mm reach) from Shanghai-based JAKA, featuring wireless drag-and-drop/graphical programming, collision detection and fenceless operation for pick-and-place, assembly, machine tending and palletizing. Includes a built-in force/torque sensor for force-controlled tasks.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Collaborative Robot (Cobot) |
| Status | Active |
| Year | 2020 |
| Origin | China |
| Released | 2020 |
| Weight | 22 kg |
| IP rating | IP65 |
| Degrees of freedom | 6 |
| Payload | 5 kg |
| Reach | 954 mm |
| Max speed | 3 m/s |
| Repeatability | ±0.02 mm |
| Operating system | JAKA |
| Connectivity | Wi-Fi |
| Use cases | Pick-and-place, Assembly, Machine tending, Palletizing |
| Warranty | 12 months |
| Made in | China |
