JAKA · Industrial · 2023

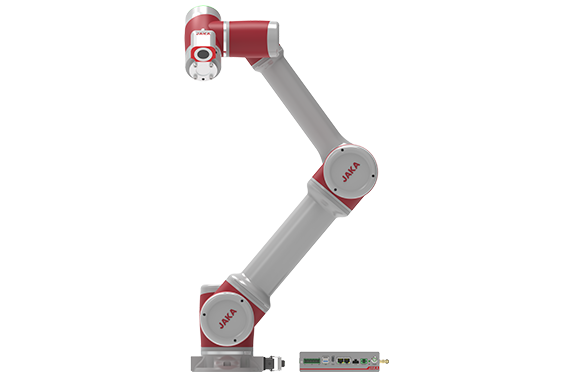

The JAKA Ai 5 is the mid-line model of JAKA's All-in-one collaborative series — the Zu 5's proven 5 kg / 954 mm / ±0.02 mm platform re-engineered around integrated machine vision. A built-in JAKA Lens 2D camera (5 MP, 24 fps, 8 mm or 16 mm lens, 0.04 mm precision) is controlled natively from JAKA's software stack, giving plug-and-play vision guidance for picking, assembly and inspection without external vision controllers or licences. The arm pairs with the compact MiniCab cabinet (180×28×47 mm, DC 30–60 V) — small enough for mobile-platform or in-machine deployment — while keeping the full JAKA workflow: wireless pendant-free teaching by drag or graphical app, collision detection for fenceless ISO 10218-1 operation, ISO 9409-1 tool flange, and TCP/IP, Modbus, PROFINET and EtherNet/IP connectivity. Typical draw is 350 W; MTBF 80,000 hours; any-orientation mounting on a 158 mm footprint.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Collaborative Robot (Cobot) |
| Status | Active |
| Year | 2023 |
| Origin | China |
| Released | 2023 |
| Weight | 23 kg |
| Frame | Aluminium & PC |
| IP rating | IP54 |
| Degrees of freedom | 6 |
| Payload | 5 kg |
| Reach | 954 mm |
| Max speed | 1 m/s |
| Repeatability | ±0.02 mm |
| Camera | Integrated JAKA Lens 2D vision — 5 MP (2592×1944) @ 24 fps, mono/colour, 8 mm or 16 mm lens, precision to 0.04 mm |
| Operating system | JAKA |
| Actuator type | Integral joint modules (motor + drive + encoder unified) |
| Connectivity | Wi-Fi, Bluetooth |
| Use cases | Vision-guided pick & place, Assembly, Machine tending, PCB handling, Inspection |
| Warranty | 24 months |
| Made in | China (Shanghai) |
