JAKA · Industrial · 2022

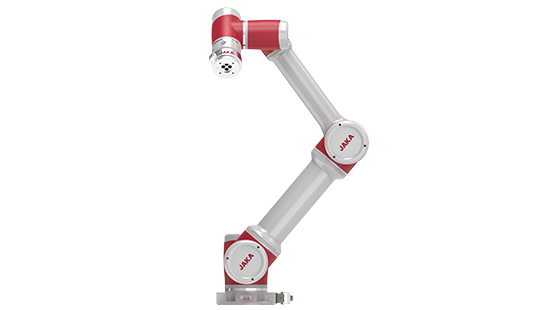

The JAKA Ai 18 is the heavy-payload flagship of JAKA's All-in-one collaborative series — 18 kg capacity on a 1,073 mm reach with ±0.03 mm repeatability, in a compact 35 kg body that undercuts most arms in its payload class. Like all Ai models it integrates a JAKA Lens 2D vision system (5 MP at 24 fps, 8 mm or 16 mm optics, 0.04 mm precision) controlled entirely within JAKA's own software, and runs from the MiniCab — one of the smallest control cabinets on the market — making vision-guided heavy handling deployable in tight cells or on mobile bases. The deliberately shorter reach concentrates rigidity for its 18 kg rating, aimed at dense pick & place, tending and palletizing of heavier workpieces. The collaborative toolkit is standard JAKA: wireless pendant-free drag/graphical teaching, collision detection for fenceless ISO 10218-1 operation, ISO 9409-1 flange, four industrial fieldbus protocols, 80,000-hour MTBF and any-orientation mounting.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Collaborative Robot (Cobot) |
| Status | Active |
| Year | 2022 |
| Origin | China |
| Released | 2022 |
| Weight | 35 kg |
| Frame | Aluminium & PC |
| IP rating | IP54 |
| Degrees of freedom | 6 |
| Payload | 18 kg |
| Reach | 1073 mm |
| Max speed | 1 m/s |
| Repeatability | ±0.03 mm |
| Camera | Integrated JAKA Lens 2D vision — 5 MP (2592×1944) @ 24 fps, mono/colour, 8 mm or 16 mm lens, precision to 0.04 mm |
| Operating system | JAKA |
| Actuator type | Integral joint modules (motor + drive + encoder unified) |
| Connectivity | Wi-Fi |
| Use cases | Vision-guided heavy pick & place, Machine tending, Palletizing, Handling, Assembly |
| Warranty | 24 months |
| Made in | China (Shanghai) |
