IIT · Quadruped · 2011

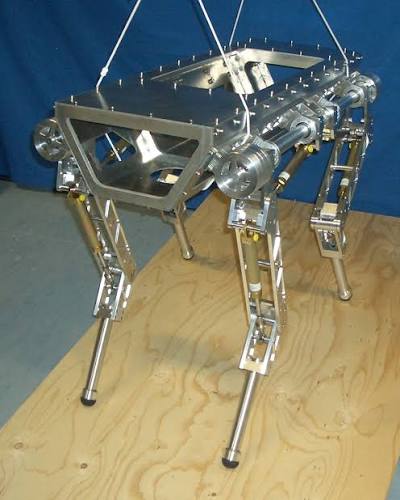

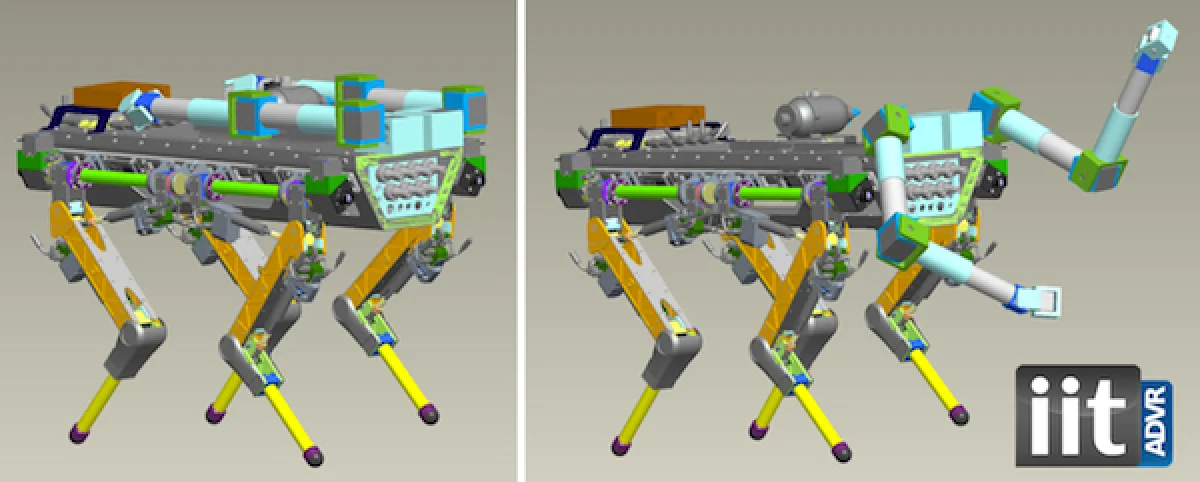

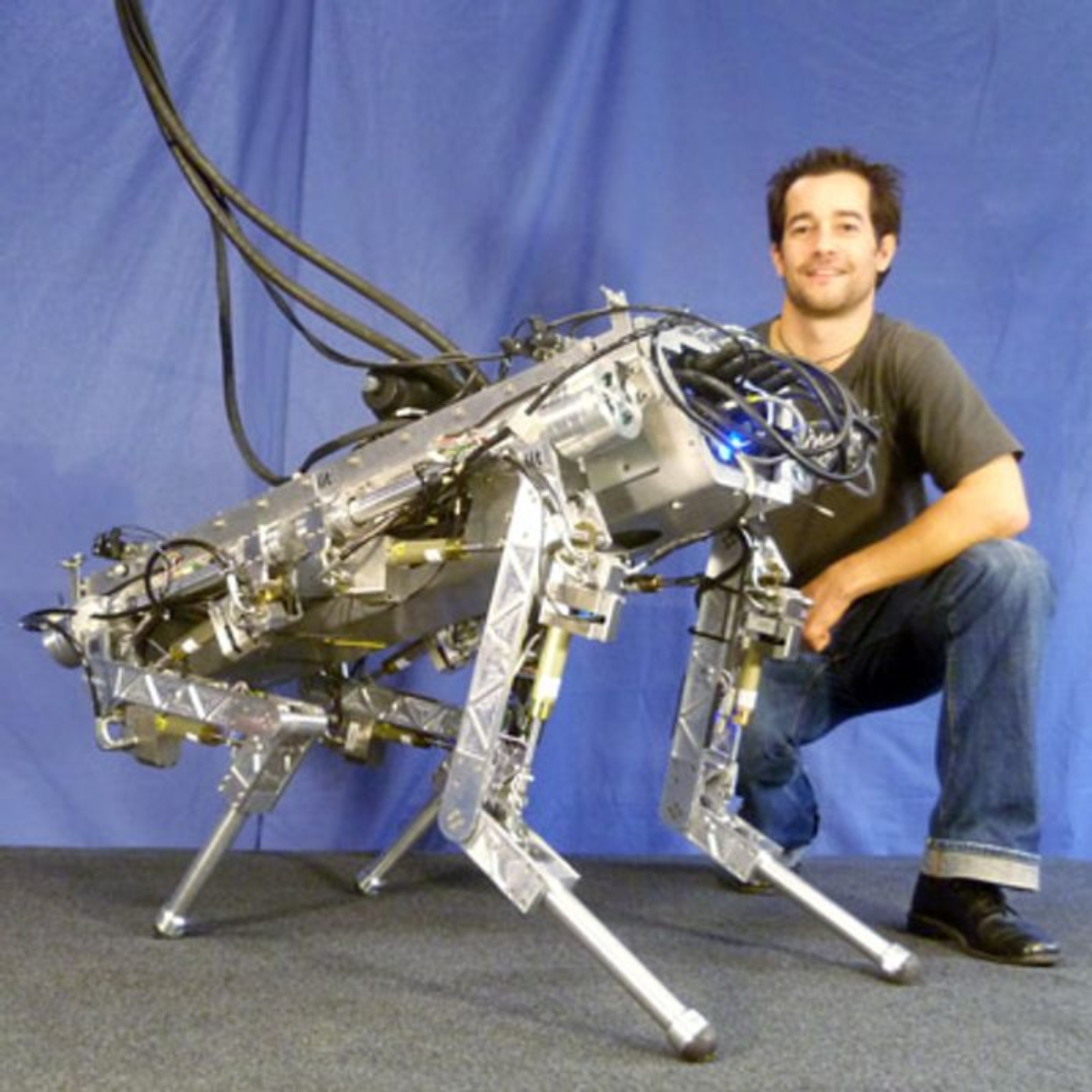

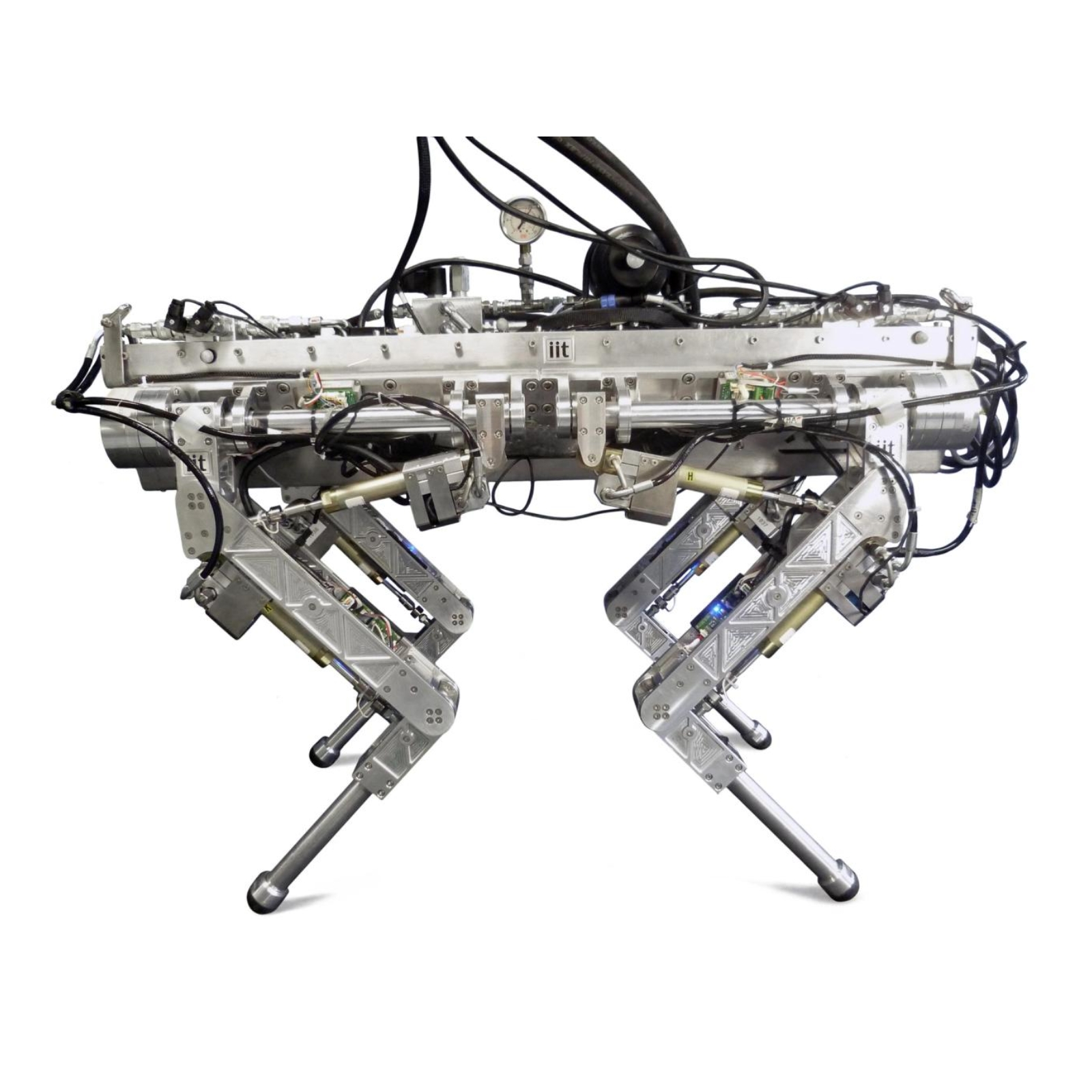

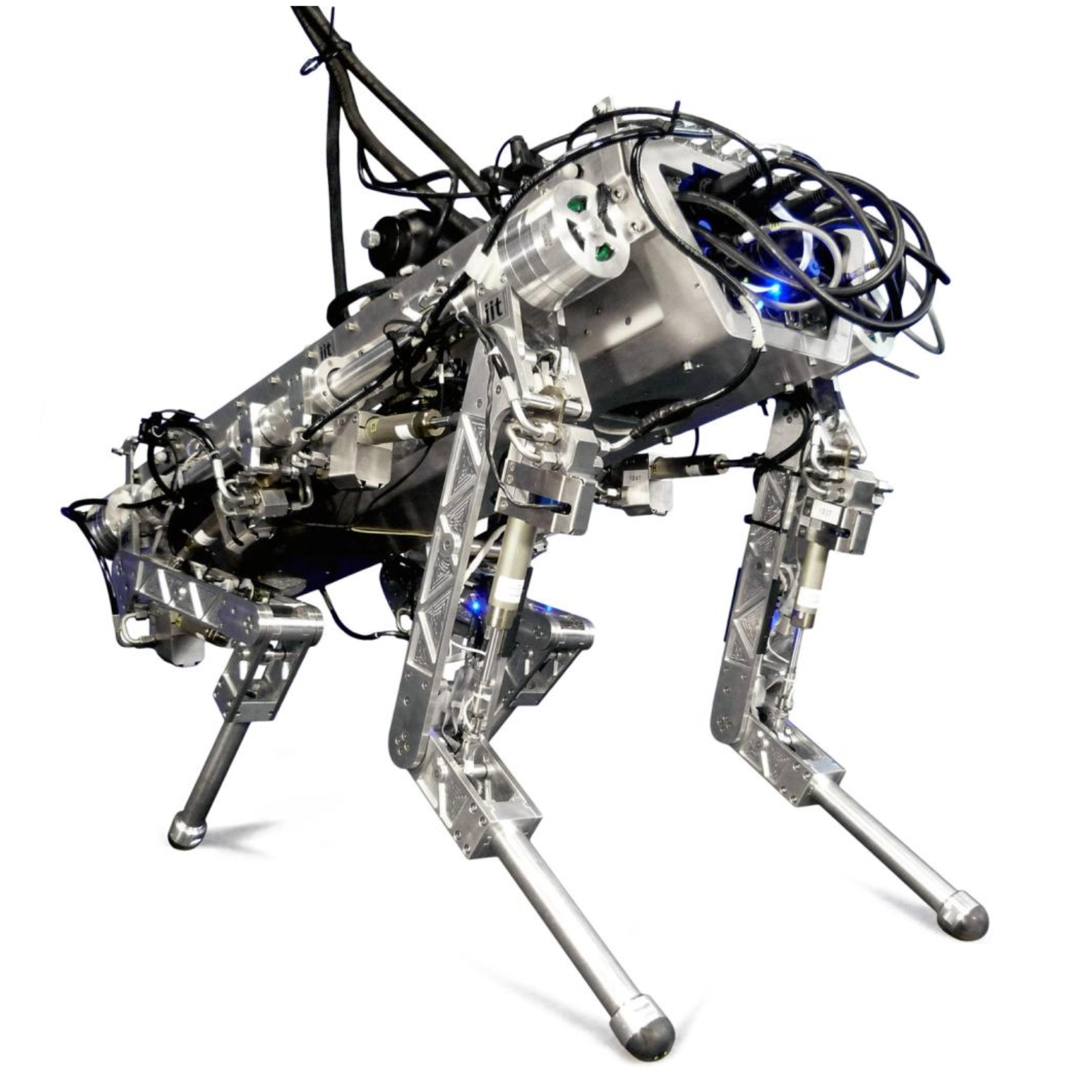

The Italian Institute of Technology's pioneering hydraulically-actuated, torque-controlled research quadruped, developed by the Dynamic Legged Systems lab. Built to study fast, versatile and robust locomotion, HyQ demonstrated dynamic trotting, jumping and rough-terrain walking and seeded the later HyQReal platform.
Price on application
View full interactive profile, comparisons & videos →| Category | Quadruped |
| Sub-type | Hydraulic Research Quadruped |
| Status | Research platform (2010-; IIT Genoa) |
| Year | 2011 |
| Origin | Italy (Genoa) |
| Released | 2011 |
| Weight | 80 kg |
| Degrees of freedom | 12 |
| Camera | true |

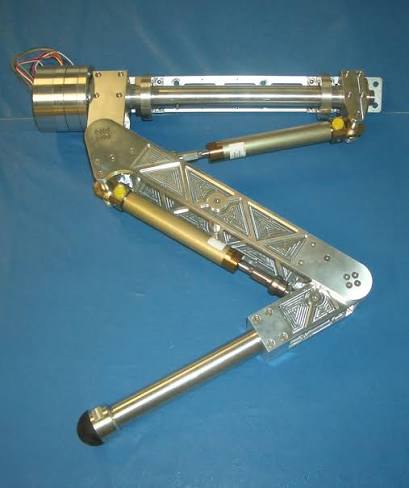

| Actuator type | 12 torque-controlled joints - hip abduction/adduction (HAA) via rotary hydraulic actuators; hip/knee flexion-extension (HFE/KFE) via hydraulic cylinders; some electric; active compliance + force/impedance control |
| Use cases | Dynamic locomotion research |
| Warranty | 12 months |
| Made in | Italy |
