Hanwha Robotics · Industrial · 2019

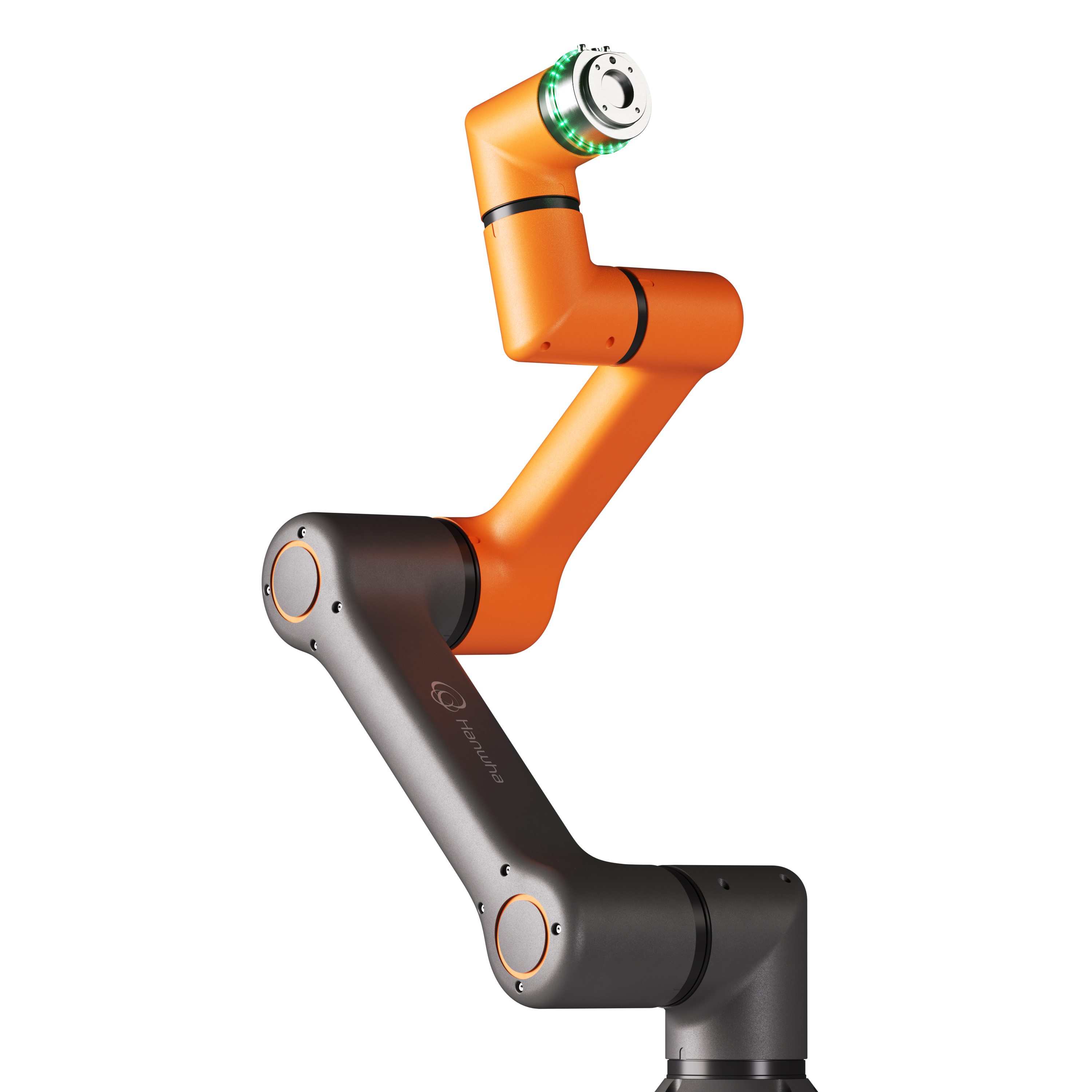

The Hanwha HCR-5A is the volume workhorse of the HCR Advanced series — a 5 kg-payload, 915 mm-reach 6-axis cobot at 21 kg on a Ø150 mm base, positioned as the most versatile model in the range. It runs ±0.05 mm repeatability at 1 m/s TCP with all joints spanning ±360° (J3 ±165°) at up to 180°/s, and carries the family's broadest certification set: CE, ISO, NSF food-zone, SIL functional safety and UL. Dual M8 tool-I/O ports (each 2 DI/2 DO, first adds 2 AI) plus an EtherCAT tool connector feed end-of-arm ecosystems, and the 1 kW controller with 16/16 flexible digital I/O pairs with the 12.1-inch touch pendant. IP54 body, ≤65 dBA, floor/wall/ceiling mounting.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Collaborative Robot (Cobot) |
| Status | Active |
| Year | 2019 |
| Origin | South Korea |
| Released | 2019 |
| Weight | 21 kg |
| Frame | Cast aluminum |
| IP rating | IP54 |
| Degrees of freedom | 6 |
| Payload | 5 kg |
| Reach | 915 mm |
| Max speed | 1 m/s |
| Repeatability | ±0.05 mm |
| Operating system | Hanwha |
| Connectivity | Wi-Fi, Bluetooth, none |
| Use cases | Machine tending, Assembly, Pick & place, Packaging, F&B |
| Warranty | 12 months |
| Made in | South Korea |
