Hanwha Robotics · Industrial · 2023

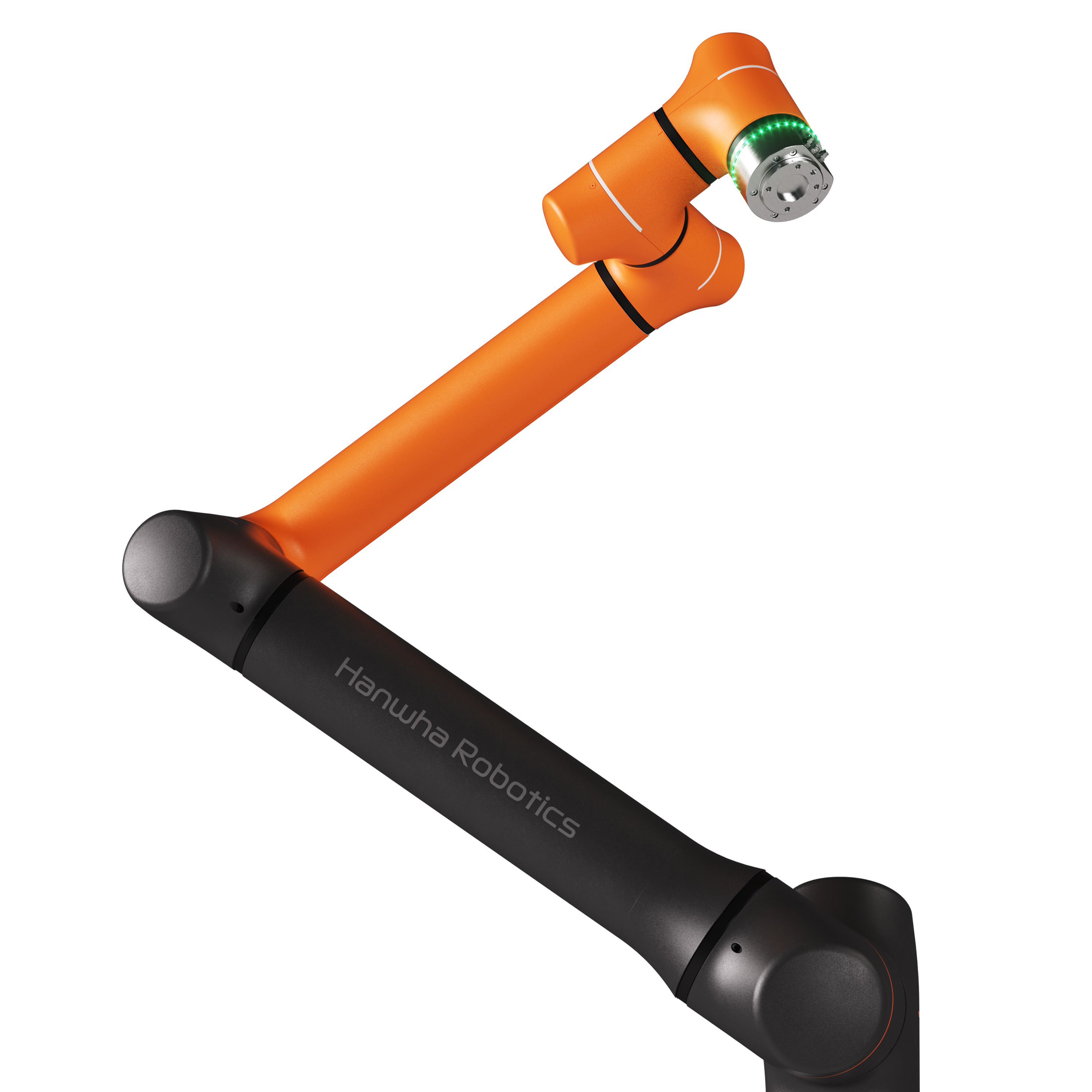

The Hanwha HCR-14 is the flagship of the HCR cobot family — highest payload (14 kg) and longest standard reach (1,420 mm) with the line's best precision (±0.04 mm) and speed (1.5 m/s TCP, wrist joints to 270°/s, which Hanwha bills as industry-leading for the class). Remarkably it weighs just 42 kg — lighter than the 12 kg-class HCR-12A — on a Ø190 mm base with a slim profile designed for genuinely human-adjacent work. It's the only HCR with EtherNet/IP alongside TCP/IP and Modbus TCP, fed by an uprated 3.6 kW controller (550×482×251 mm, 25.2 kg). Dual M8 tool-I/O ports plus EtherCAT tool connector, 12.1-inch touch pendant, IP54, ≤65 dBA, floor/ceiling/30° wall mounting.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Collaborative Robot (Cobot) |
| Status | Active |
| Year | 2023 |
| Origin | South Korea |
| Released | 2023 |
| Weight | 42 kg |
| Frame | Cast aluminum |
| IP rating | IP54 |
| Degrees of freedom | 6 |
| Payload | 14 kg |
| Reach | 1420 mm |
| Max speed | 1.5 m/s |
| Repeatability | ±0.04 mm |
| Camera | Optional vision system compatible |
| Operating system | Hanwha |
| Connectivity | Wi-Fi, Bluetooth |
| Use cases | High-payload collaboration, Palletizing, Machine tending, Dispensing, Logistics |
| Warranty | 12 months |
| Made in | South Korea |
