Hanwha Robotics · Industrial · 2019

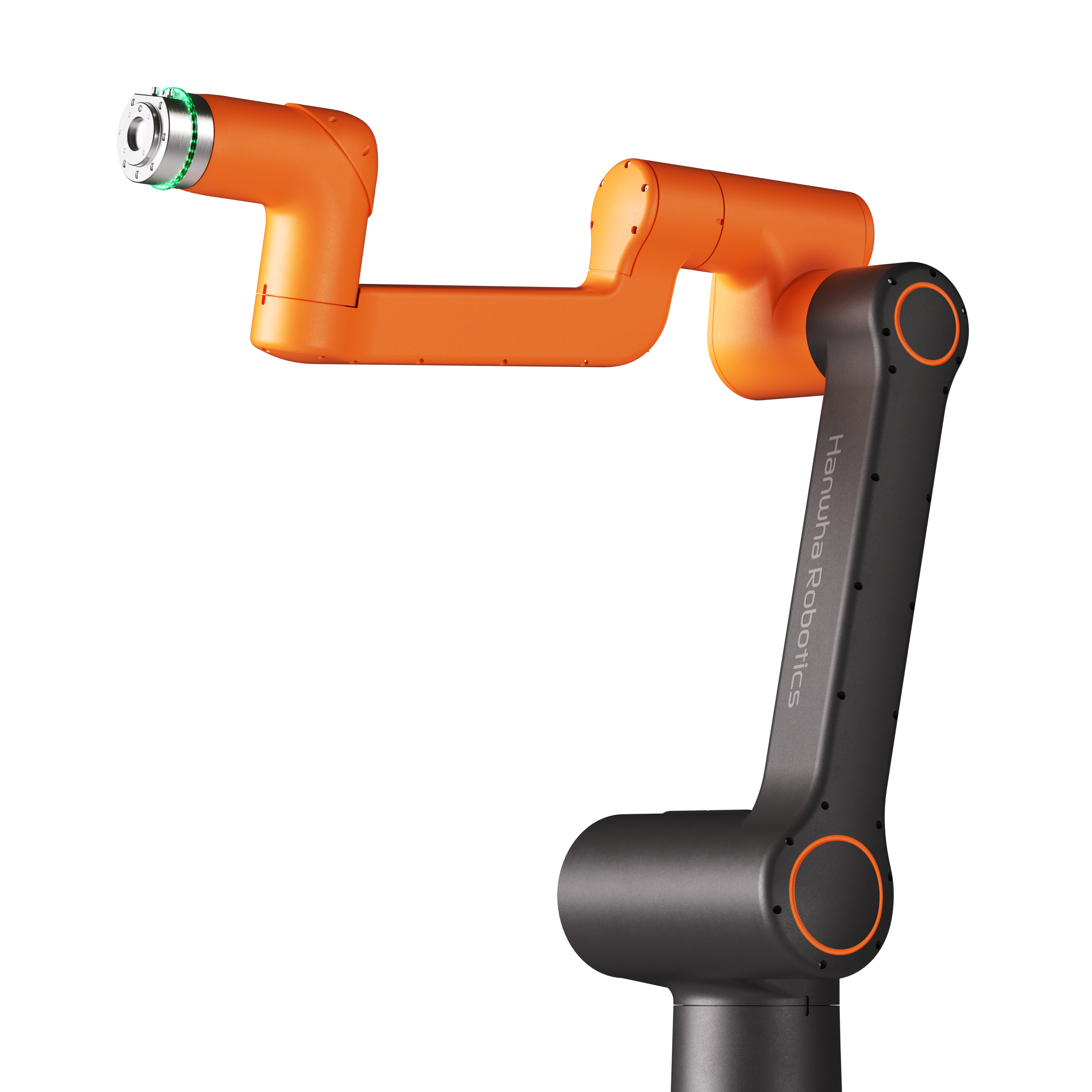

The Hanwha HCR-12A is the heavy-load model of the HCR Advanced series: 12 kg payload across 1,300 mm reach, aimed at automotive, metal-processing and logistics tasks. The 53 kg arm on a 220×227 mm base runs ±0.07 mm repeatability at 1 m/s TCP, with faster 200°/s wrist axes over working ranges of J1 ±180° to J6 ±360°. Dual M8 tool-I/O ports with 24 V power and an EtherCAT tool connector handle end-of-arm gear, while the 19.8 kg / 1 kW controller provides 16/16 digital channels over TCP/IP and Modbus TCP, driven from the 12.1-inch touch pendant. IP54, ≤70 dBA, mounting on floor, ceiling, or walls to 30°.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Collaborative Robot (Cobot) |
| Status | Active |
| Year | 2019 |
| Origin | South Korea |
| Released | 2019 |
| Weight | 53 kg |
| Frame | Cast aluminum |
| IP rating | IP54 |
| Degrees of freedom | 6 |
| Payload | 12 kg |
| Reach | 1300 mm |
| Max speed | 1 m/s |
| Repeatability | ±0.07 mm |
| Operating system | Hanwha |
| Connectivity | Wi-Fi |
| Use cases | Automotive, Metal processing, Logistics, Heavy machine tending, Palletizing |
| Made in | South Korea |
