Hanwha Robotics · Industrial · 2024

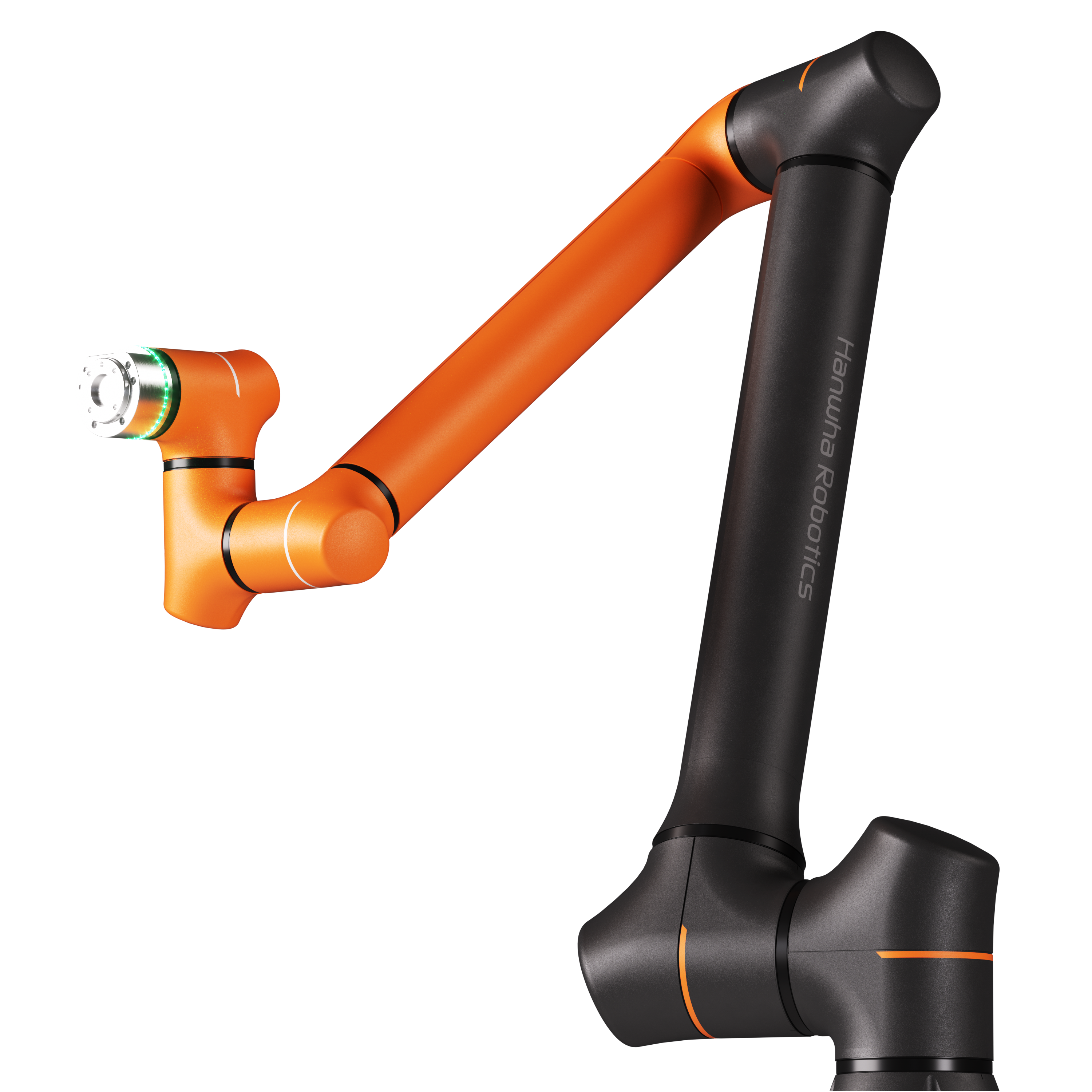

The Hanwha HCR-10L is the long-reach specialist of the HCR line — 10 kg payload across an industry-leading 1,800 mm reach, letting one 45 kg arm cover work areas that would otherwise need rails or repositioning. Hanwha positions it for precise operations across wide zones: welding runs, large-part processing, and tending multiple stations from a single mount. It inherits the family platform — direct teaching, collision detection, dual-channel safety I/O, M8 tool I/O with EtherCAT tool connector, TCP/IP + Modbus TCP controller, and the 12.1-inch touch pendant. Full joint-level parameters for the 10L aren't yet in Hanwha's published English spec sheet; those rows are logged for manufacturer outreach.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Collaborative Robot (Cobot) |
| Status | Active |
| Year | 2024 |
| Origin | South Korea |
| Released | 2024 |
| Weight | 45 kg |
| Frame | Cast aluminum |
| IP rating | IP54 |
| Degrees of freedom | 6 |
| Payload | 10 kg |
| Reach | 1800 mm |
| Max speed | 2 m/s |
| Repeatability | ±0.05 mm |
| Operating system | Hanwha |
| Use cases | Wide-area operations, Welding, Large-part processing, Machine tending across zones |
| Warranty | 12 months |
| Made in | South Korea |
