Franka Robotics · Industrial · 2022

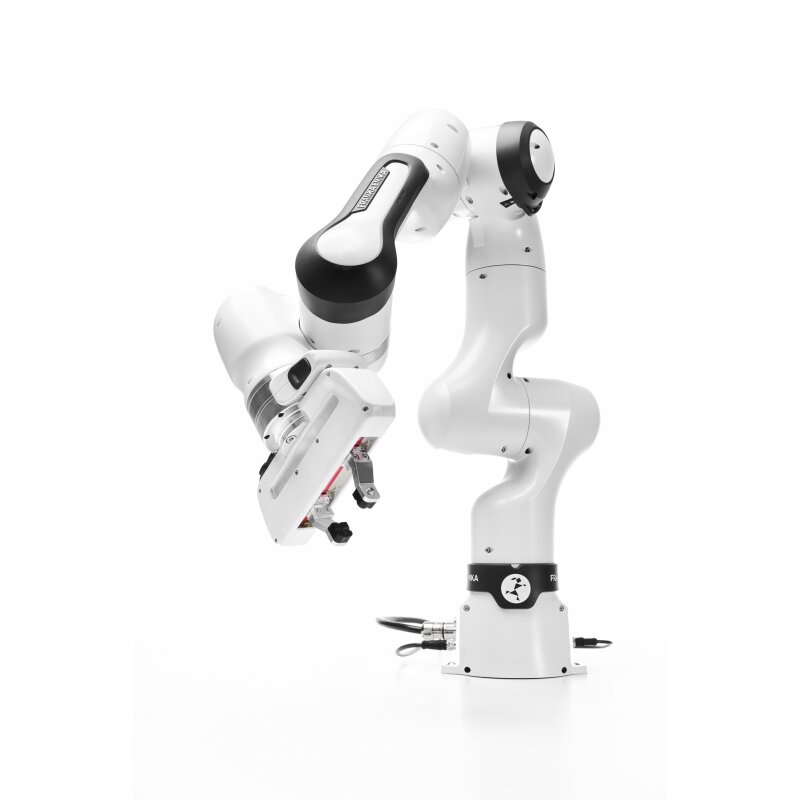

The Franka Research 3 (FR3) is the reference force-sensitive robot of the AI and robot-learning research world — the successor to the Franka Emika Panda, engineered and made in Germany, and adopted by leading universities and labs worldwide. Its foundation is a 7-DoF torque-controlled arm with a link-side torque sensor in every joint, giving fine estimation of external contact forces, compliant hand-guiding at ~2.5 N, and the sensitivity to be stopped by a balloon. The 3 kg / 855 mm arm (17.8 kg, IP40) exposes both easy and deep control: the browser-based Desk UI with no-code Apps for rapid setup, and the 1 kHz Franka Control Interface (FCI) via libfranka for real-time torque control that made it the standard research platform — with official franka_ros/ros2 and MATLAB/Simulink integration. It's TÜV SÜD-certified to PL d Cat. 3 with a full safe-motion function set (SLP, SLS, SLD, SEEPO), runs from a compact 80 W controller, and continuously improves via free OTA system images. Franka Hand and vacuum grippers integrate plug-and-use.
Price level: ★☆☆☆☆
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | 7-Axis Force-Sensitive Research Cobot |
| Status | Active |
| Year | 2022 |
| Origin | Germany |
| Announced | 2022 |
| Dimensions (H×W×D) | 1285 × 1000 × 1000 mm |
| Weight | 17.8 kg |
| Frame | Carbon fiber reinforced aluminum |
| IP rating | IP40 |
| Degrees of freedom | 7 |
| Payload | 3 kg |
| Reach | 855 mm |
| Max speed | 2 m/s |
| Repeatability | ±0.1 mm |
| Camera | 1 |
| Chipset | Intel x86_64 |
| AI model | Franka AI Vision |
| Operating system | Franka OS 5.0 |
| Connectivity | Wi-Fi, Bluetooth |
| Use cases | AI & robot-learning research, Force-controlled / compliant manipulation, Imitation & reinforcement learning, Delicate assembly, Human-robot collaboration research |
| Warranty | 36 months |
| Made in | Germany (Munich) |
