Flexiv · Industrial · 2022

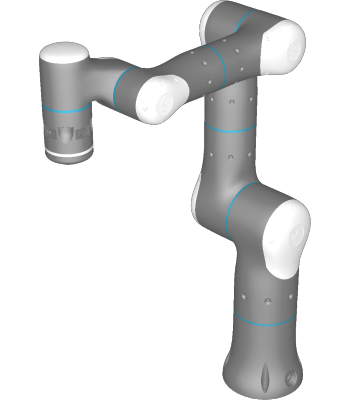

The Flexiv Rizon 10s pairs the 10 kg-class adaptive platform with a flange-mounted 6-DoF force/torque sensor, combining the Rizon 10's whole-body torque sensing with dedicated end-effector force feedback for precision contact tasks at payload. It offers the longest reach in the Rizon family at 984 mm (39 kg mass, ±0.05 mm ISO 9283 repeatability, 0.2 N force sensing accuracy, 350 N max TCP force) and shares the line's core architecture: 7-DoF human-arm kinematics holding an optimised force-control posture, IP65 protection, any-angle or AMR/AGV mounting, and ISO 13849 PL=d dual-channel safety with CE & ETL certification. Deployment runs through the Hesper controller with Flexiv Elements visual programming, hand-guided teaching, and the C++/Python RDK, with official flexiv_ros/flexiv_ros2 bridges for research and integration work.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | 7-Axis Adaptive Robot (Cobot) |
| Status | Active |
| Year | 2022 |
| Origin | USA / China |
| Released | 2022 |
| Dimensions (H×W×D) | 1020 × 180 × 180 mm |
| Weight | 39 kg |
| IP rating | IP65 |
| Degrees of freedom | 7 |
| Payload | 10 kg |
| Reach | 984 mm |
| Max speed | 1 m/s |
| Repeatability | ±0.05 mm |
| Camera | Built-in vision system with depth perception |
| AI model | Flexiv hierarchical intelligence — AI-driven vision + force-guided manipulation |
| Operating system | Flexiv |
| Connectivity | Wi-Fi, Bluetooth, Optional |
| Use cases | Force-critical heavy assembly, Precision insertion at high payload, Finishing, Research, Automotive component assembly |
| Warranty | 12 months |
| Made in | China |
