FANUC · Industrial · 2020

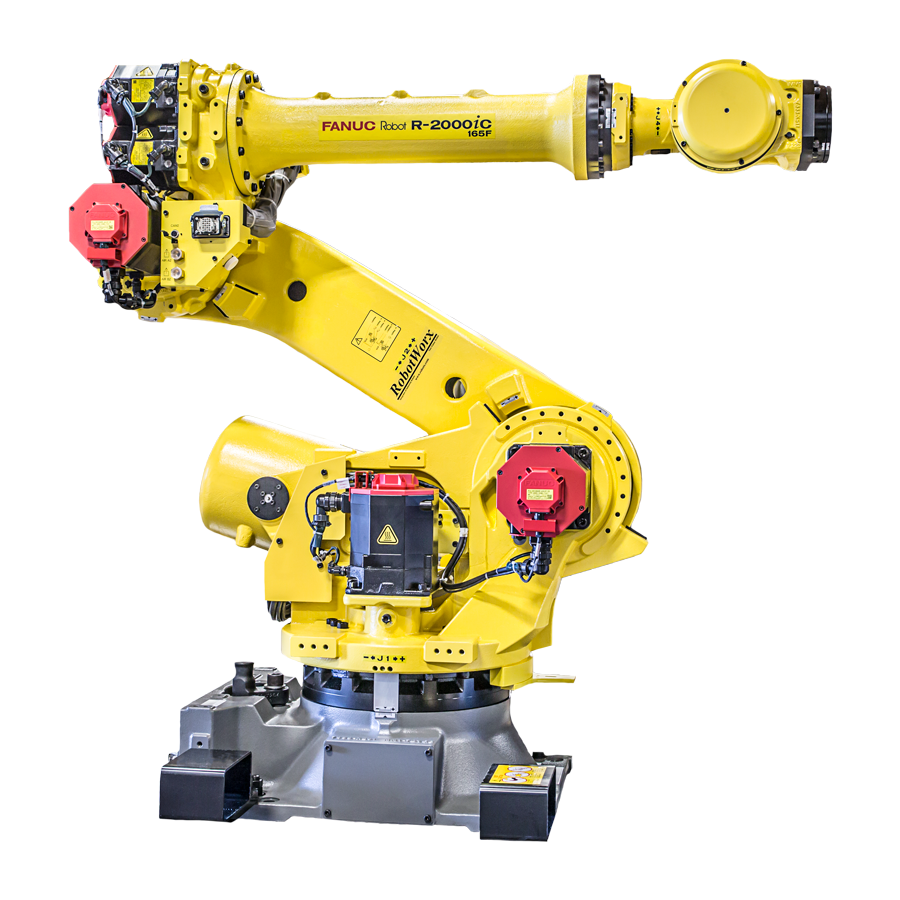

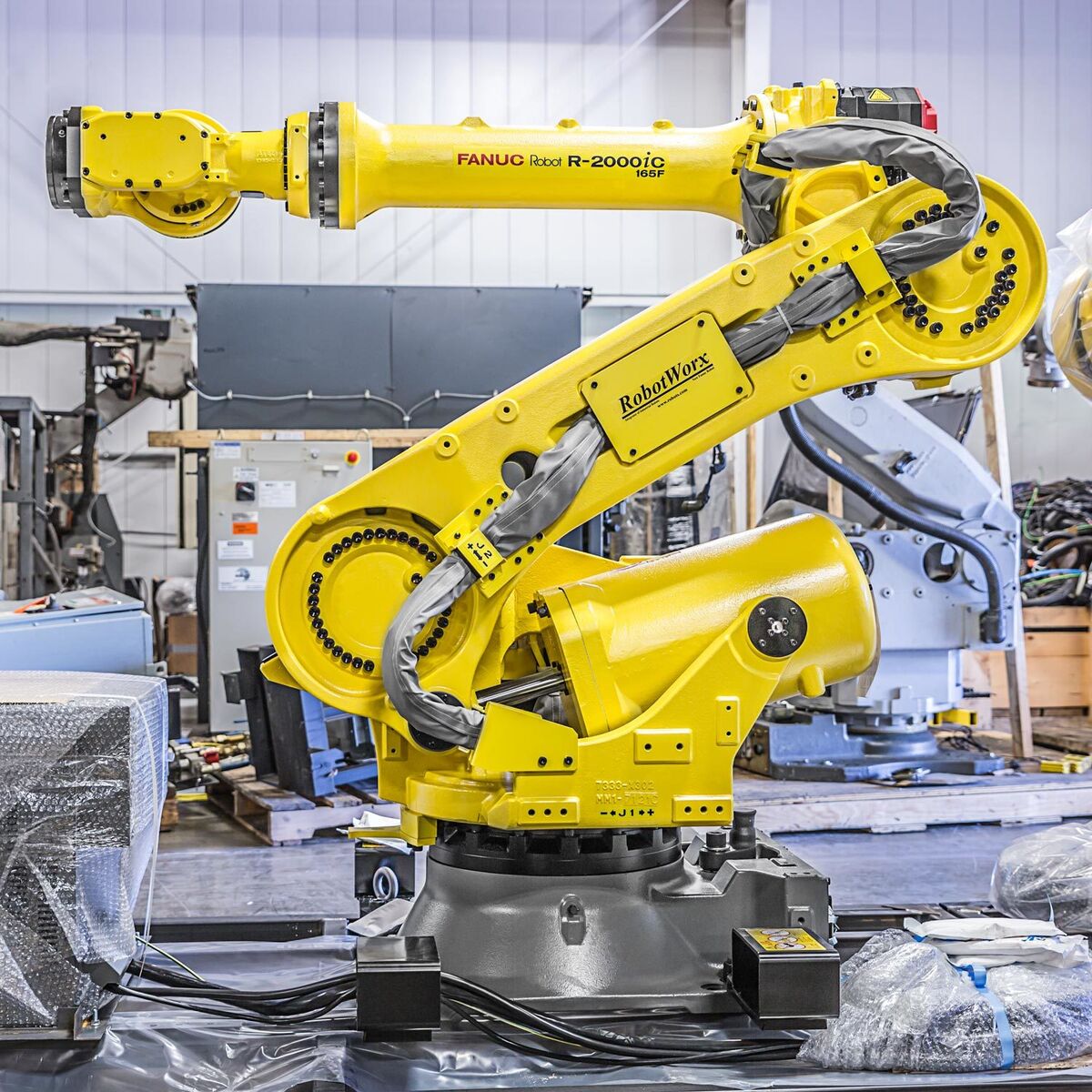

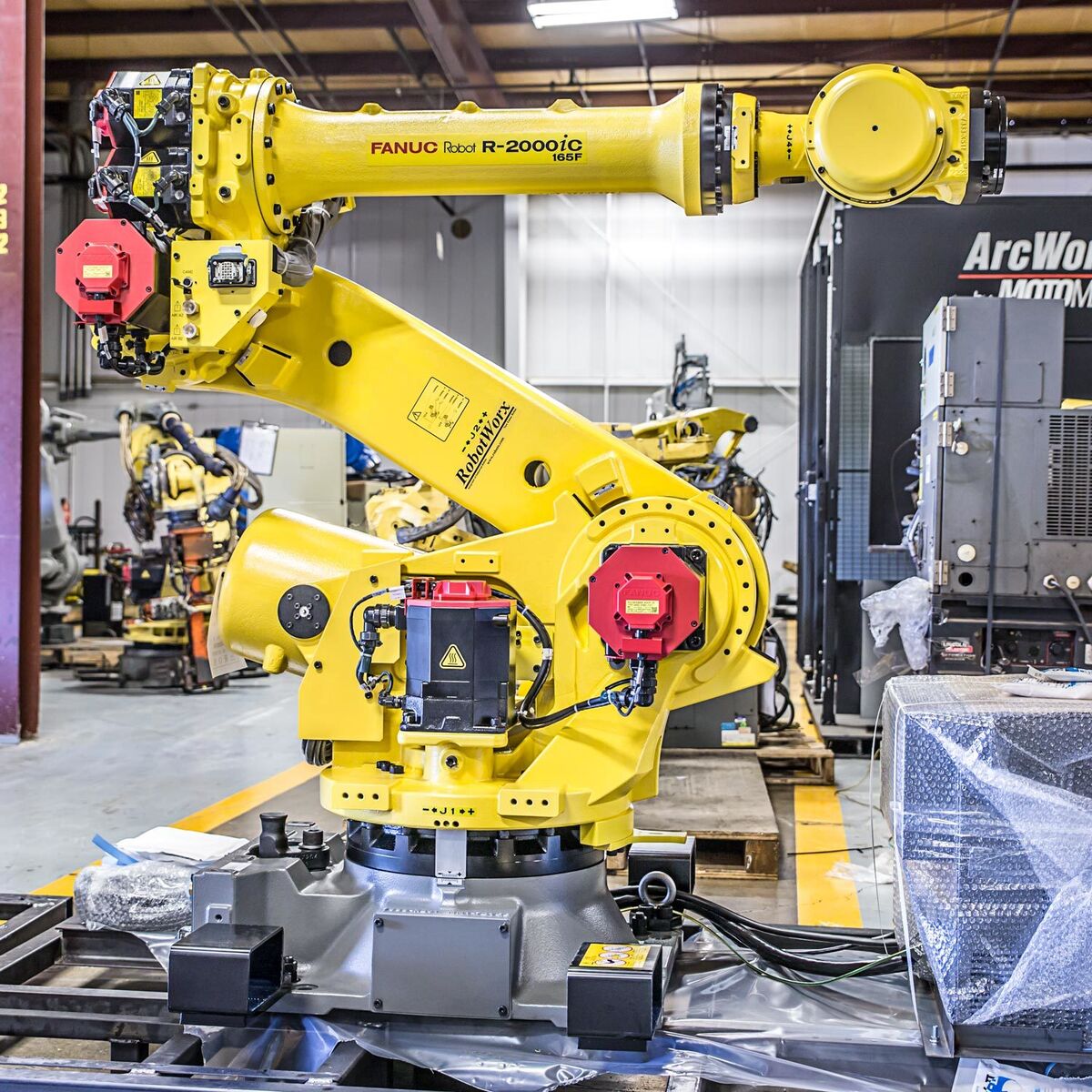

High-speed spot welding robot with 210kg payload. Optimized for automotive body assembly with exceptional speed and precision.
Price level: ★★★★★
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | 6-Axis Articulated Arm |
| Status | Active |
| Year | 2020 |
| Origin | Japan |
| Dimensions (H×W×D) | 3100 × 1200 × 1200 mm |
| Weight | 1850 kg |
| Frame | Cast iron |
| IP rating | IP67 |
| Payload | 210 kg |

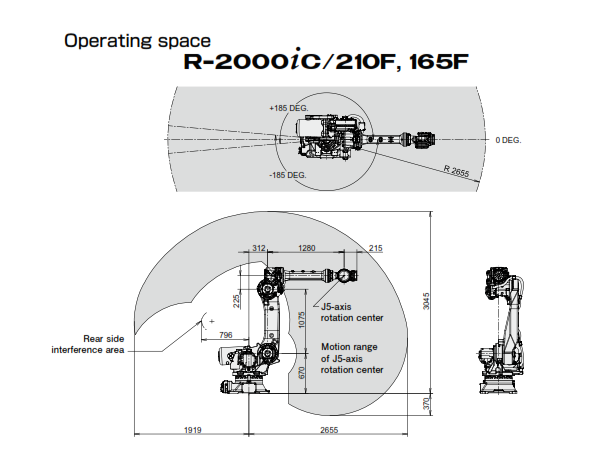

| Reach | 2655 mm |
| Max speed | 2.8 m/s |
| Repeatability | ±0.06 mm |
| Chipset | FANUC R-30iB |
| Operating system | R-30iB Plus |
| Connectivity | Wi-Fi, Bluetooth |

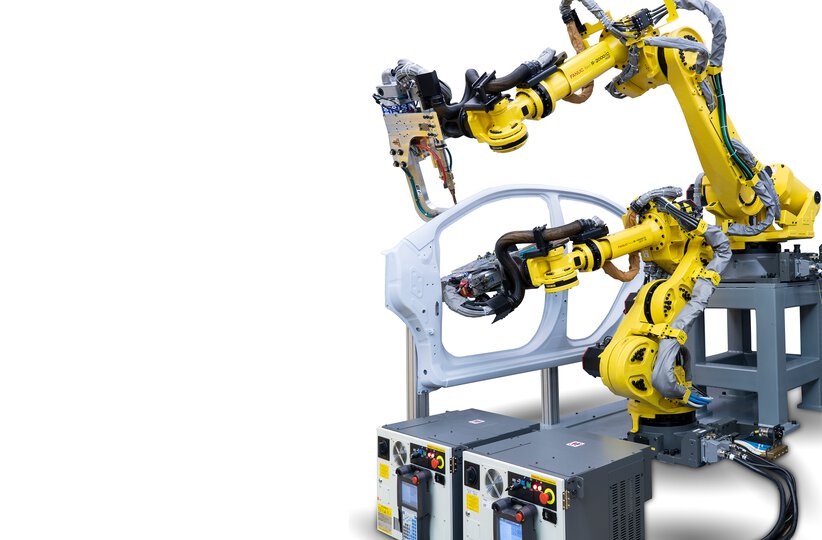

| Use cases | Spot welding, Automotive assembly, Heavy material handling, Machine tending |
| Warranty | 18 months |
| Made in | Japan |
