The FANUC CRX-5iA is the entry model of FANUC's CRX collaborative family — 5 kg payload, 994 mm reach, ±0.03 mm repeatability from a 25 kg arm light enough to install without a crane. Like every CRX it carries FANUC's signature reliability claim: 8 years of zero maintenance, backed by the company's industrial track record. Built-in torque sensing in every joint gives sensitive contact detection for fenceless ISO 10218-1 collaboration, and programming is deliberately novice-friendly — drag-and-drop icons on the Tablet Teach Pendant plus lead-through teaching, running on the compact R-30iB Mini Plus controller from standard single-phase power. Two J6 connection ports quick-change end-of-arm tooling, and the FANUC ecosystem (iRVision, force sensors, ROBOGUIDE simulation, ROS-Industrial) plugs straight in. A food-grade variant adds NSF-H1 grease, white epoxy paint and rust/chemical-resistant plating.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Collaborative Robot Arm |
| Status | Active |
| Year | 2023 |
| Origin | Japan |
| Weight | 25 kg |
| IP rating | IP67 (body & wrist) |
| Degrees of freedom | 6 |
| Payload | 5 kg |
| Reach | 994 mm |
| Max speed | 1 m/s |
| Repeatability | ±0.03 mm |
| AI model | iRVision integration — built-in FANUC vision & force-sensor ecosystem |

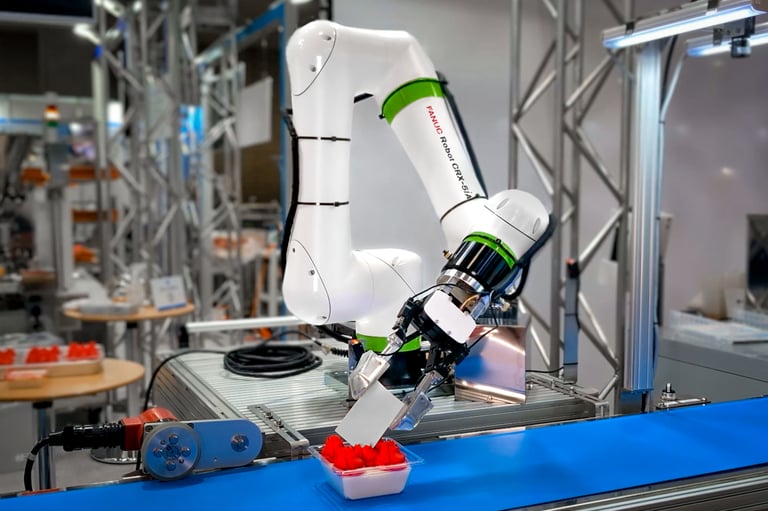

| Use cases | Pick & place, Machine tending, Assembly, Packaging, Food handling (food-grade variant) |
| Made in | Japan |
