Dobot · Industrial · 2022

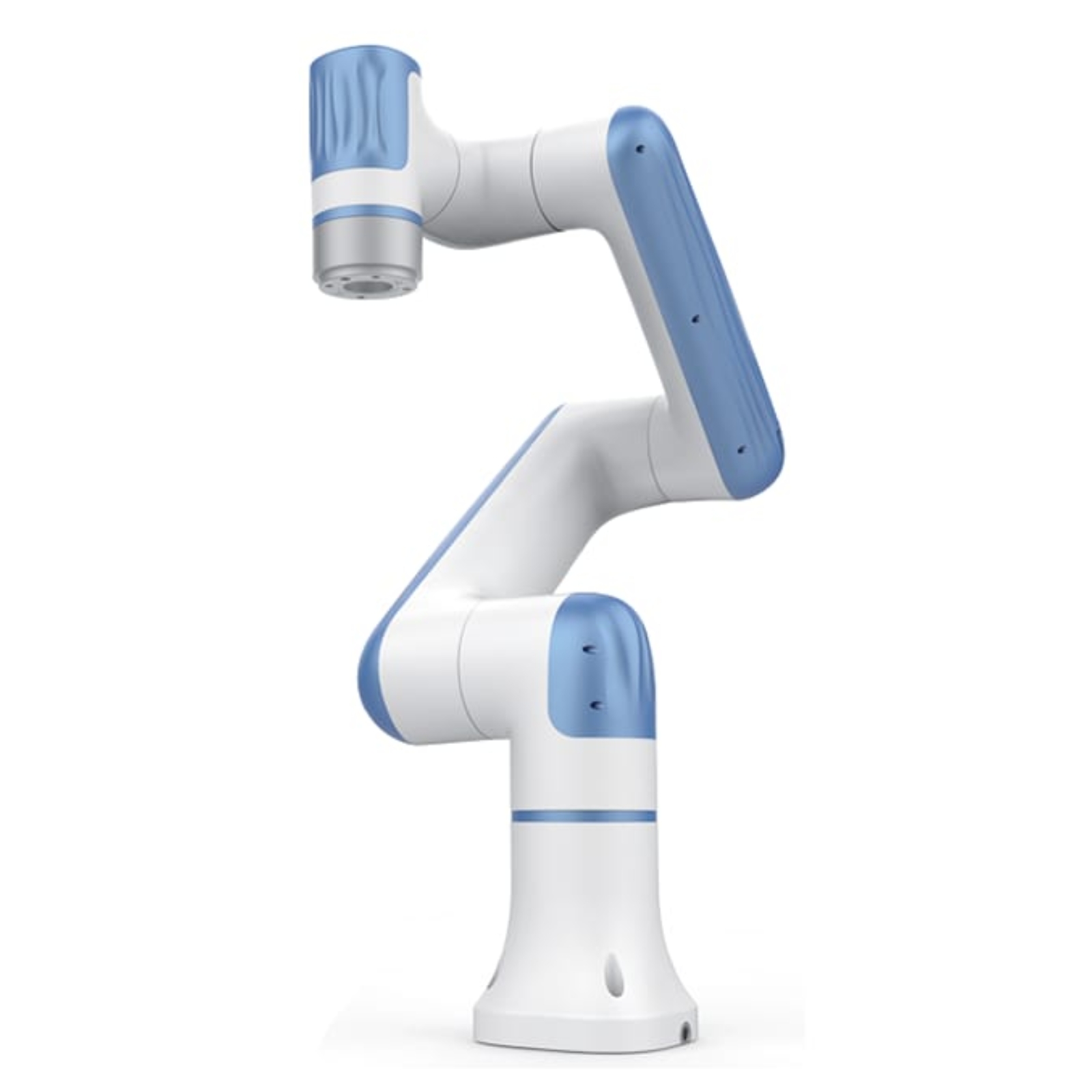

The Dobot Nova 5 is a compact 6-axis collaborative robot with a 5 kg payload, 850 mm reach and a fine ±0.02 mm repeatability, designed by Dobot (China's #1 cobot exporter) for service, retail and light-industrial automation — it's a common choice for robotic coffee and beverage stations as well as light assembly and pick-and-place. It shares the Dobot cobot toolkit: adjustable collision detection with optional SafeSkin proximity sensing, IP54 sealing, electromagnetic brakes, and safety aligned to ISO 13849 / ISO/TS 15066, all programmed through the graphical DobotStudio Pro (plus script and Blockly) with Modbus, PROFINET and EtherNet/IP connectivity and a ROS driver. Its compact form and service-friendly design make it a fixture in customer-facing automation and education. NOTE: Dobot publishes core specs (payload/reach/repeatability); exact weight, joint speeds and power draw for the Nova 5 are logged as outreach rather than guessed.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Collaborative Robot (Nova Series) |
| Status | Active |
| Year | 2022 |
| Origin | China |
| IP rating | IP54 (arm) |
| Degrees of freedom | 6 |
| Payload | 5 kg |
| Reach | 850 mm |
| Repeatability | ±0.02 mm |
| Operating system | DobotStudio Pro |
| Use cases | Service & retail automation, Coffee / beverage robots, Light assembly, Pick & place, Education |
| Made in | China (Shenzhen) |
