Dobot · Industrial · 2021

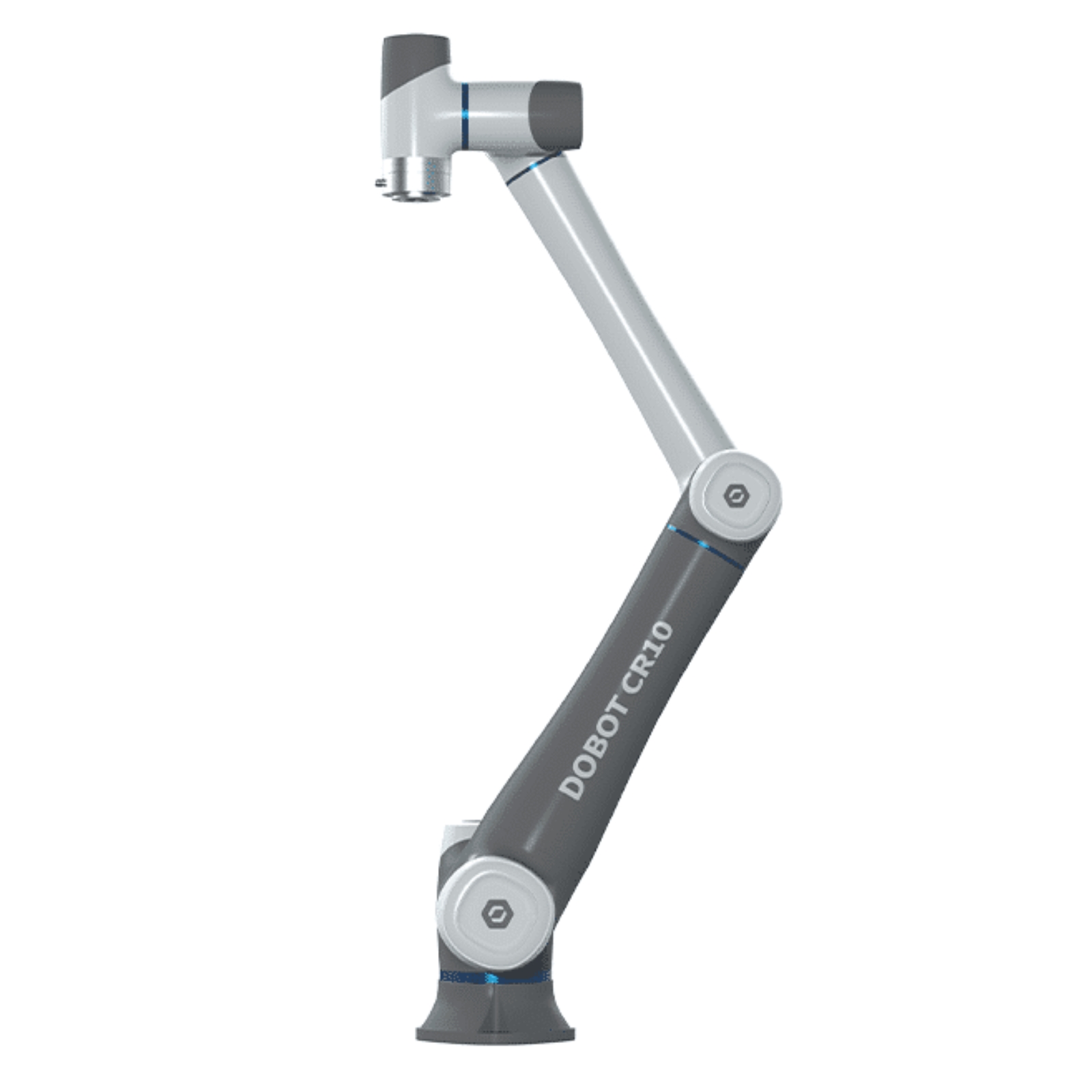

The Dobot CR10 is the high-reach model of Dobot's CR collaborative series — 10 kg payload across a long 1,525 mm reach with ±0.03 mm repeatability, from Dobot, China's #1 cobot exporter. Built for affordability and fast deployment (about 20 minutes to set up, one hour to production), it uses a plug-and-play design with simple wiring and quick accessory access, running on DC 48 V with a 4 m/s TCP speed and all joints spanning ±360°. Safety is a strength: 22 built-in features certified to ISO 13849 and ISO/TS 15066, five adjustable levels of collision detection, and optional DOBOT SafeSkin technology giving 15 cm proximity sensing and active protection. It's programmed through DobotStudio Pro (graphical and script), with Modbus/PROFINET/EtherNet-IP connectivity and a 32,000-hour MTBF. Part of a CR family spanning CR3 to CR16, the CR10 targets palletizing, loading/unloading and heavy material handling. NOTE: reach recorded as Dobot's official 1,525 mm; some aggregators list 1,300 mm (an earlier-gen figure).
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Collaborative Robot (CR Series) |
| Status | Active |
| Year | 2021 |
| Origin | China |
| Weight | 38 kg |
| IP rating | IP54 (arm; control box IP20) |
| Degrees of freedom | 6 |
| Payload | 10 kg |
| Reach | 1525 mm |
| Max speed | 4 m/s |
| Repeatability | ±0.03 mm |
| Operating system | DobotStudio Pro |
| Use cases | Palletizing, Loading & unloading, Carton palletizing, Machine tending, Material handling |
| Made in | China (Shenzhen) |
