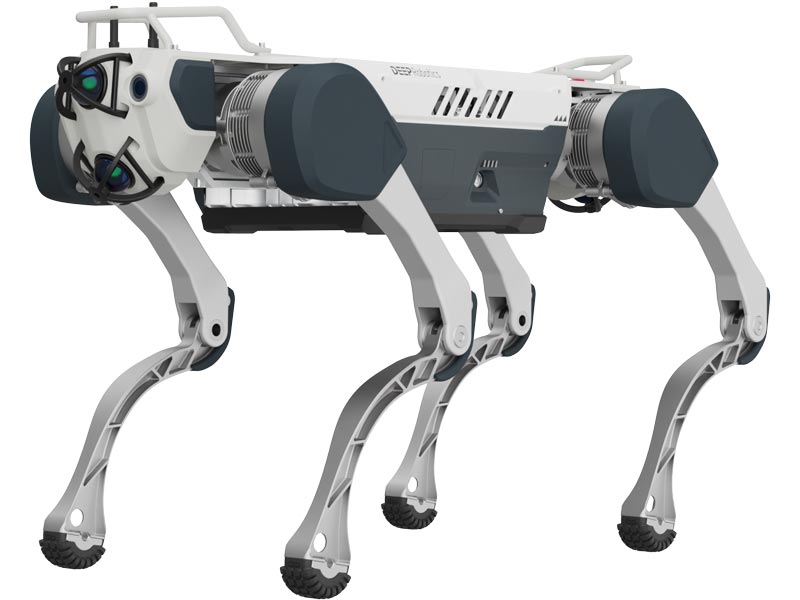

DEEP Robotics · Quadruped · 2023
DEEP Robotics' flagship IP67-rated inspection quadruped for harsh, GPS-denied environments such as utility tunnels and substations. Adds higher perception density, longer endurance and all-weather operation over the X20, with multi-LiDAR SLAM, RGB/thermal imaging and auto-charge docks for round-the-clock patrols.
Price level: ★★★★☆
View full interactive profile, comparisons & videos →| Category | Quadruped |
| Sub-type | Industrial Inspection Quadruped |
| Status | Active |
| Year | 2023 |
| Origin | China |
| Dimensions (H×W×D) | 470 × 695 mm |
| Weight | 56 kg |
| IP rating | IP67 |
| Degrees of freedom | 12 |
| Payload | 20 kg |
| Max speed | 4 m/s |
| Battery life | 240 min |
| Max range | 10 km |
| Camera | true |
| Actuator type | 12 DOF; DEEP Robotics J80-27P/J100-64P/J100-116P joint modules; advanced traction control + adaptive gait (gravel/sand/wet metal grating) |
| Navigation | Multi-LiDAR SLAM |
| Connectivity | Wi-Fi, 5G, GPS |
| Use cases | Utility-tunnel inspection, Substation patrol, Security, Surveying |
| Made in | China |
