Boston Dynamics · Quadruped · 2005

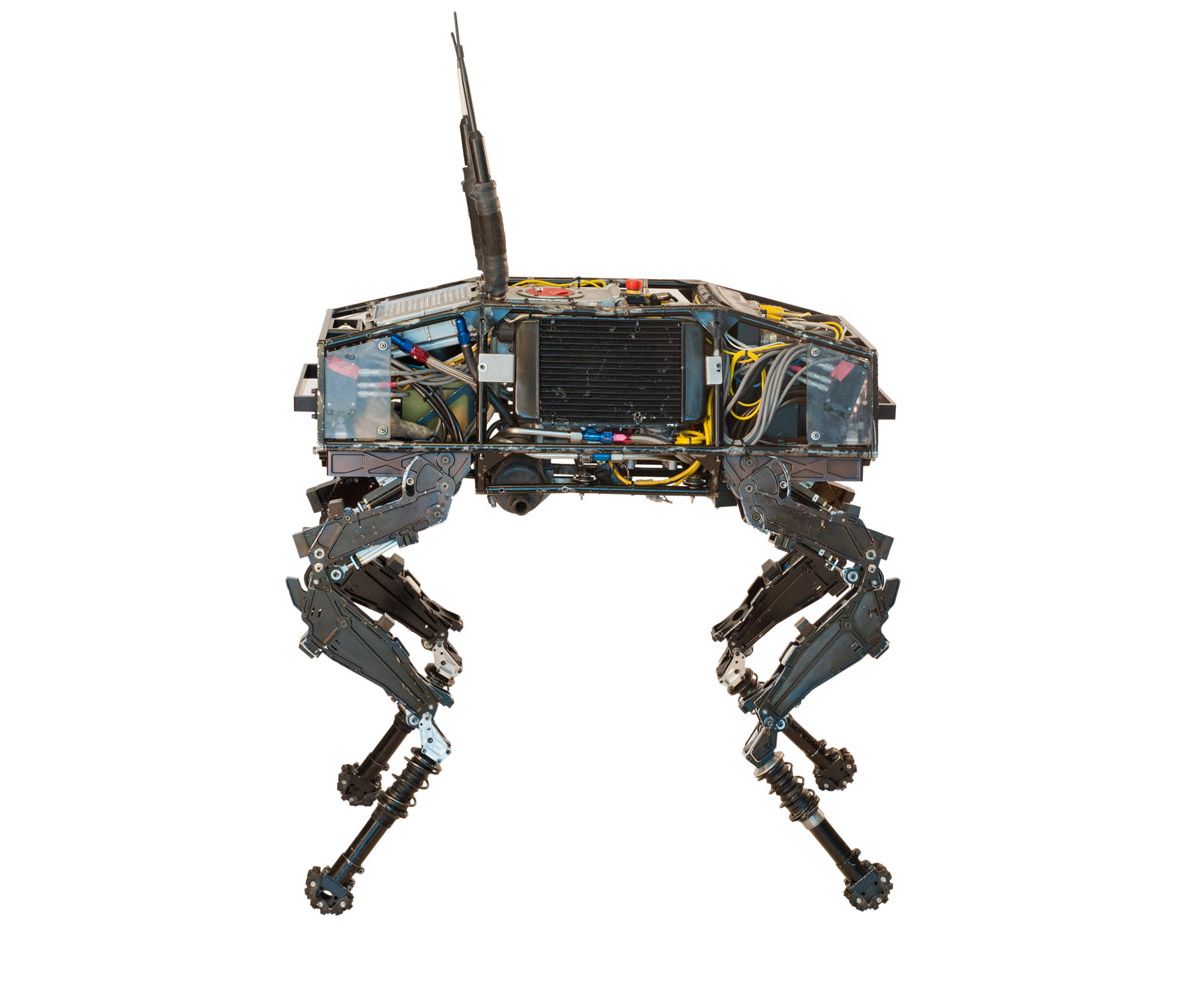

BigDog (2005) was Boston Dynamics' pioneering DARPA-funded rough-terrain quadruped — a gasoline-powered, hydraulically actuated robot the size of a large dog, designed to carry ~150kg of load for soldiers over terrain too rough for wheeled vehicles. It could recover balance on ice and slopes and became one of the most famous early legged robots, laying the groundwork for LS3 and later Spot.
Price on application
View full interactive profile, comparisons & videos →| Category | Quadruped |
| Sub-type | Rough-Terrain Military Quadruped (historical) |
| Status | Discontinued (2015) |
| Year | 2005 |
| Origin | USA |
| Weight | 75 kg |
| Degrees of freedom | 16 |
| Payload | 150 kg |
| Max speed | 1.8 m/s |
| Camera | true |
| Operating system | QNX RTOS |
| Actuator type | Hydraulic - 4 legs x 4 low-friction hydraulic cylinder actuators; compliant elements (absorb shock, recycle energy); gasoline-engine-driven hydraulic pump |
| Use cases | Military load-carrying (research), Rough-terrain locomotion research |
| Made in | USA |
