ABB · Industrial · 2023

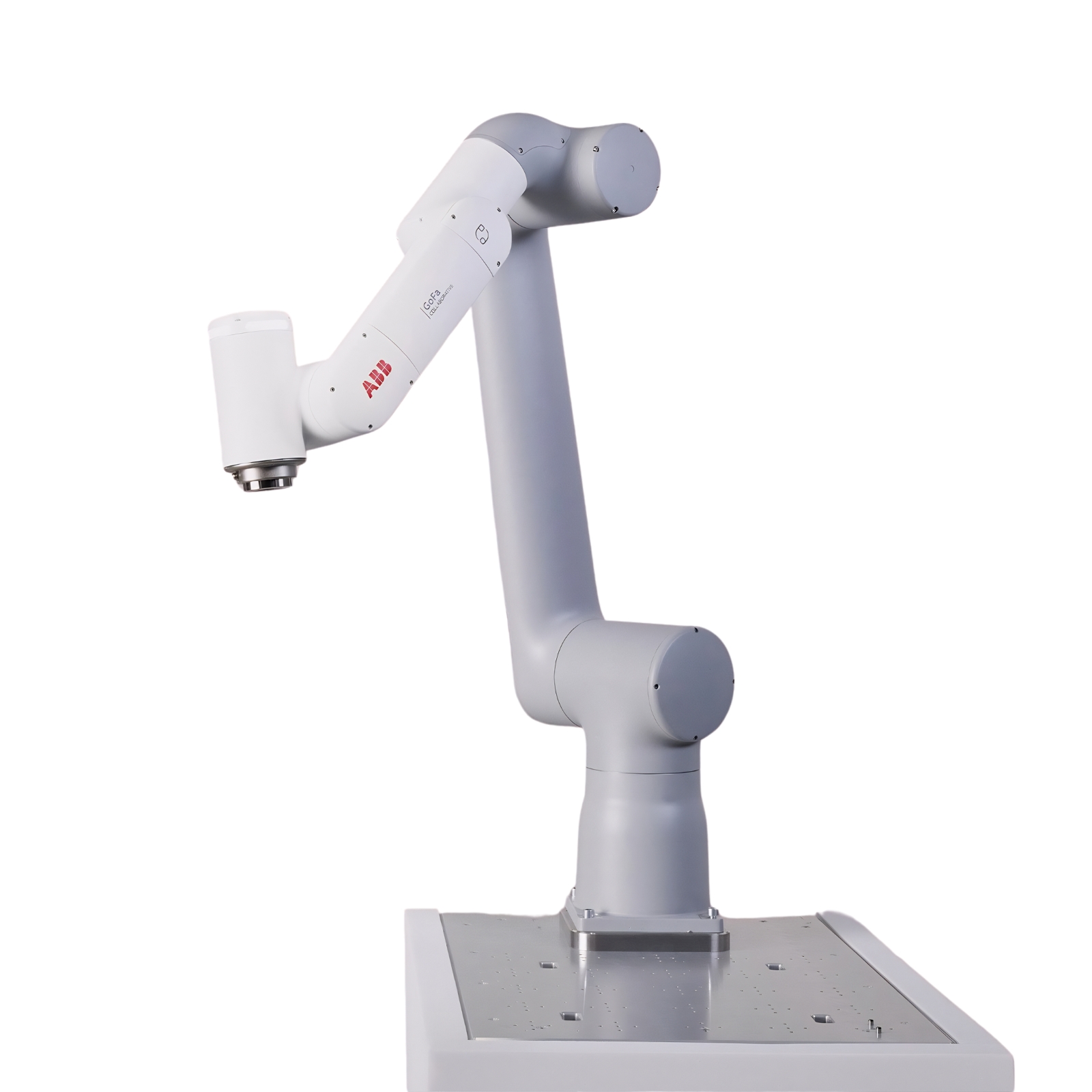

The ABB GoFa 12 is the payload flagship of the CRB 15000 collaborative family — 12 kg across 1,270 mm wrist reach (1,370 mm flange) at the line's ±0.02 mm repeatability and 2.2 m/s TCP speed, from a 48 kg IP67-sealed arm that actually undercuts the longer GoFa 10 on mass. It carries the complete GoFa architecture: torque and position sensors in all six joints, PL d Cat. 3 SafeMove power-and-force limiting with up to 16 safety zones, rounded no-pinch geometry, interaction status light, and the OmniCore controller running RobotWare 7. Programming spans grab-anywhere lead-through, Wizard Easy Programming blocks on the FlexPendant, RAPID, and RobotStudio offline with ~99% simulation fidelity; the Ultra Accuracy option brings 0.03 mm path accuracy for sealing and laser work at full payload. ISO Class 4 cleanroom rated, any-direction mounting, Pro variant with PROFINET.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Collaborative Robot (Cobot) |
| Status | Active |
| Year | 2023 |
| Origin | Switzerland / Sweden |
| Weight | 48 kg |
| IP rating | IP67 |
| Degrees of freedom | 6 |
| Payload | 12 kg |
| Reach | 1270 mm |
| Max speed | 2.2 m/s |
| Repeatability | ±0.02 mm |
| Operating system | ABB RobotWare 7 |
| Use cases | Heavier collaborative handling, Machine tending, Palletizing, Polishing, Assembly |
| Made in | China (Shanghai) / global ABB plants |
