ABB · Industrial · 2023

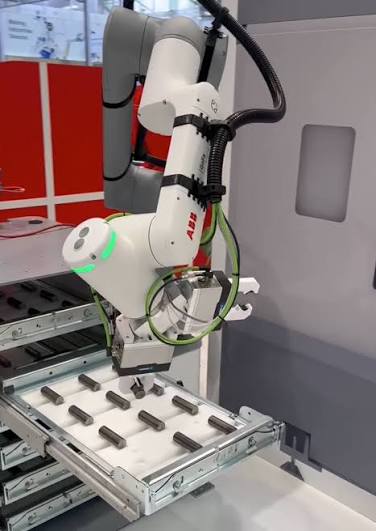

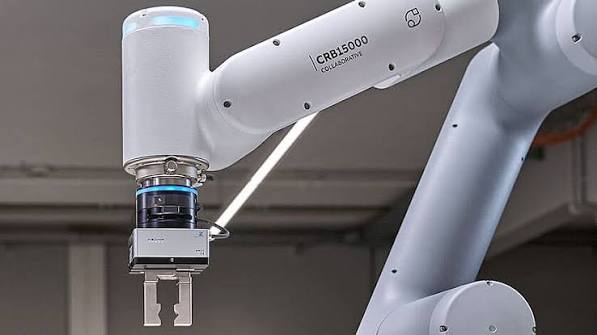

The heavy-duty member of ABB's GoFa (CRB 15000) collaborative-robot family — model CRB 15000-12/1.27 — with a 12 kg payload and 1,270 mm reach in a compact footprint. Like its GoFa siblings it puts integrated torque and position sensors in all six joints for power-and-force limiting, bringing the arm to an immediate stop on contact so it can work fence-free beside people (SafeMove, PL d Cat. 3). It runs a maximum TCP speed of 2.2 m/s with best-in-class 0.02 mm repeatability, is powered by ABB's OmniCore controller, and is set up via lead-through (grab-anywhere) motion, Wizard easy programming and the FlexPendant, with RobotStudio offline programming matching reality to ~99%. An optional Ultra Accuracy feature adds 0.03 mm path / 0.1 mm absolute accuracy for gluing, sealing, laser welding and cutting.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Collaborative Robot (6-axis cobot) |
| Status | Active |
| Year | 2023 |
| Origin | Switzerland |
| IP rating | IP54 (IP67 option) |
| Degrees of freedom | 6 |
| Payload | 12 kg |
| Reach | 1270 mm |
| Max speed | 2.2 m/s |
| Repeatability | ±0.02 mm |
| Use cases | Machine tending, Welding, Palletizing, Assembly / screwdriving, Material handling / packaging |
| Made in | Sweden |
