ABB · Industrial · 2023

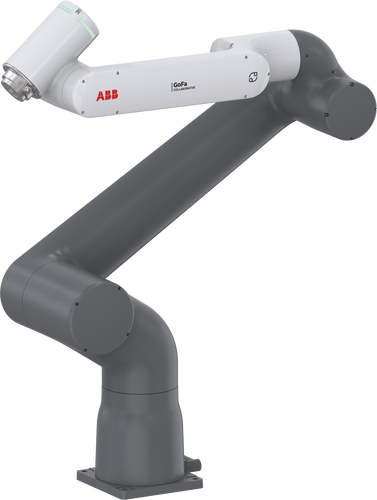

The ABB GoFa 10 extends the CRB 15000 collaborative family to a 1,520 mm wrist reach (1,620 mm flange — 14% longer than comparable cobots per ABB) with 10 kg payload, keeping the family's ±0.02 mm repeatability and 2.2 m/s TCP ceiling. Its IP67 sealing — a step above the GoFa 5's IP54 — suits dusty and moisture-prone floors across a 5–45 °C range, and the 51 kg arm on a ~200×200 mm base mounts in any orientation. The platform is pure GoFa: joint-integrated torque/position sensing feeding PL d Cat. 3 SafeMove with 16 configurable zones, interaction status light, grab-anywhere lead-through, Wizard blocks, RAPID and RobotStudio offline programming on the OmniCore controller. The Ultra Accuracy option (0.03 mm path / 0.1 mm absolute) opens sealing, laser welding and precision cutting across its wide envelope. ISO Class 4 cleanroom; Pro variant adds PROFINET.
Price on application
View full interactive profile, comparisons & videos →| Category | Industrial |
| Sub-type | Collaborative Robot (Cobot) |
| Status | Active |
| Year | 2023 |
| Origin | Switzerland / Sweden |
| Weight | 51 kg |
| IP rating | IP67 |
| Degrees of freedom | 6 |
| Payload | 10 kg |
| Reach | 1520 mm |
| Max speed | 2.2 m/s |
| Repeatability | ±0.02 mm |
| Operating system | ABB RobotWare 7 |
| Use cases | Long-reach machine tending, Palletizing, Welding support, Polishing, Parts handling |
| Made in | China (Shanghai) / global ABB plants |
